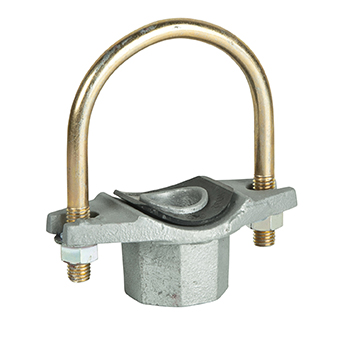

3L U-Bolt Mechanical Tee

  • FM Approved Logo Mid Grey 300.jpg
  • UL Logo Mid Grey.jpg
  • VdS Logo mid grey 2.jpg
  • CNBOP-B Logo - Grey.jpg
Size range DN32 x DN15 to DN65 x DN25 (1¼" x ½" to 2½" x 1")
Maximum working pressure Up to 20.7 bar (300 psi)*

*depending on size and certification, please refer to Data Sheet 8.63
Working temperature -34°C to 110°C (-30°F to 230°F)
Gasket type EPDM
Outlet connection Threaded
Material Ductile Iron
Finish Red painted or Galvanised
Approvals FM Approved, UL Listed, VdS, CNBOP

Rapidrop Grooved couplings and fittings are used in the assembly of grooved piping systems. They are available in painted and galvanised finishes and are FM, UL, VdS and CNBOP approved. The Rapidrop 3L U bolt type tee is pressure rated to 300psi and is used to create a quick and easy pipe oulet. They can be used in standard and thin walled pipes.

Sizes & Dimensions

Nominal
Size
mm/in		 Hole Dia
mm/in
+1.6.0/+0.063.0		 Working
Pressure
PSIMPa		 Dimensions Bolt Size
A
mm/in		 B
mm/in		 C
mm/in		 No Size
mm
32 x 15
1¼ x ½		 30
1.18		 300
2.07		 54.4
2.14		 88.9
3.50		 57.2
2.25		 3/8 x 73
M10X73
32 x 20
1¼ x ¾		 30
1.18		 300
2.07		 54.4
2.14		 88.9
3.50		 57.2
2.25		 3/8 x 73
M10X73
32 x 25
1¼ x 1		 30
1.18		 300
2.07		 57.7
2.27		 88.9
3.50		 57.2
2.25		 3/8 x 73
M10X73
40 x 15
1½ x ½		 30
1.18		 300
2.07		 43
1.69		 88.9
3.50		 57.2
2.25		 3/8 x 73
M10X73
40 x 20
1½ x ¾		 30
1.18		 300
2.07		 51
2.0		 88.9
3.50		 57.2
2.25		 3/8 x 73
M10X73
40 x 25
1½ x 1		 30
1.18		 300
2.07		 60.8
2.39		 88.9
3.50		 57.2
2.25		 3/8 x 73
M10X73
50 x 15
2 x ½		 30
1.18		 300
2.07		 63.3
2.49		 95.3
3.75		 57.2
2.25		 3/8 x 90
M10X90
50 x 20
2 x ¾		 30
1.18		 300
2.07		 63.3
2.49		 95.3
3.75		 57.2
2.25		 3/8 x 90
M10X90
50 x 25
2 x 1		 30
1.18		 300
2.07		 66.6
2.62		 95.3
3.75		 57.2
2.25		 3/8 x 90
M10X90
65 x 15
2½ x ½		 30
1.18		 300
2.07		 69.9
2.75		 108.0
4.25		 57.2
2.25		 3/8 x 105
M10X105
65 x 20
2½ x ¾		 30
1.18		 300
2.07		 69.9
2.75		 108.0
4.25		 57.2
2.25		 3/8 x 105
M10X105
65 x 25
2½ x 1		 30
1.18		 300
2.07		 73.2
2.88		 108.0
4.25		 57.2
2.25		 3/8 x 105
M10X105
