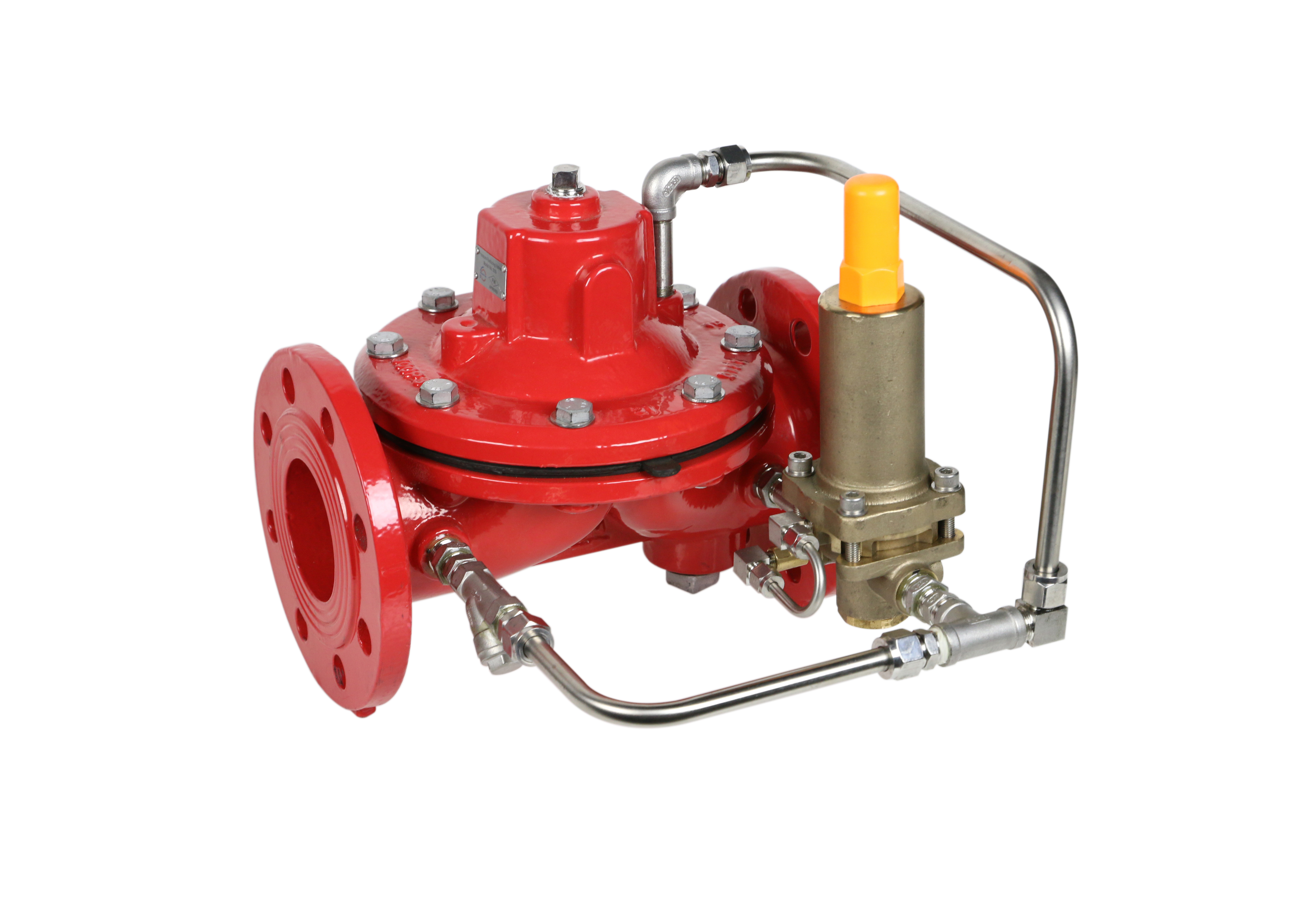

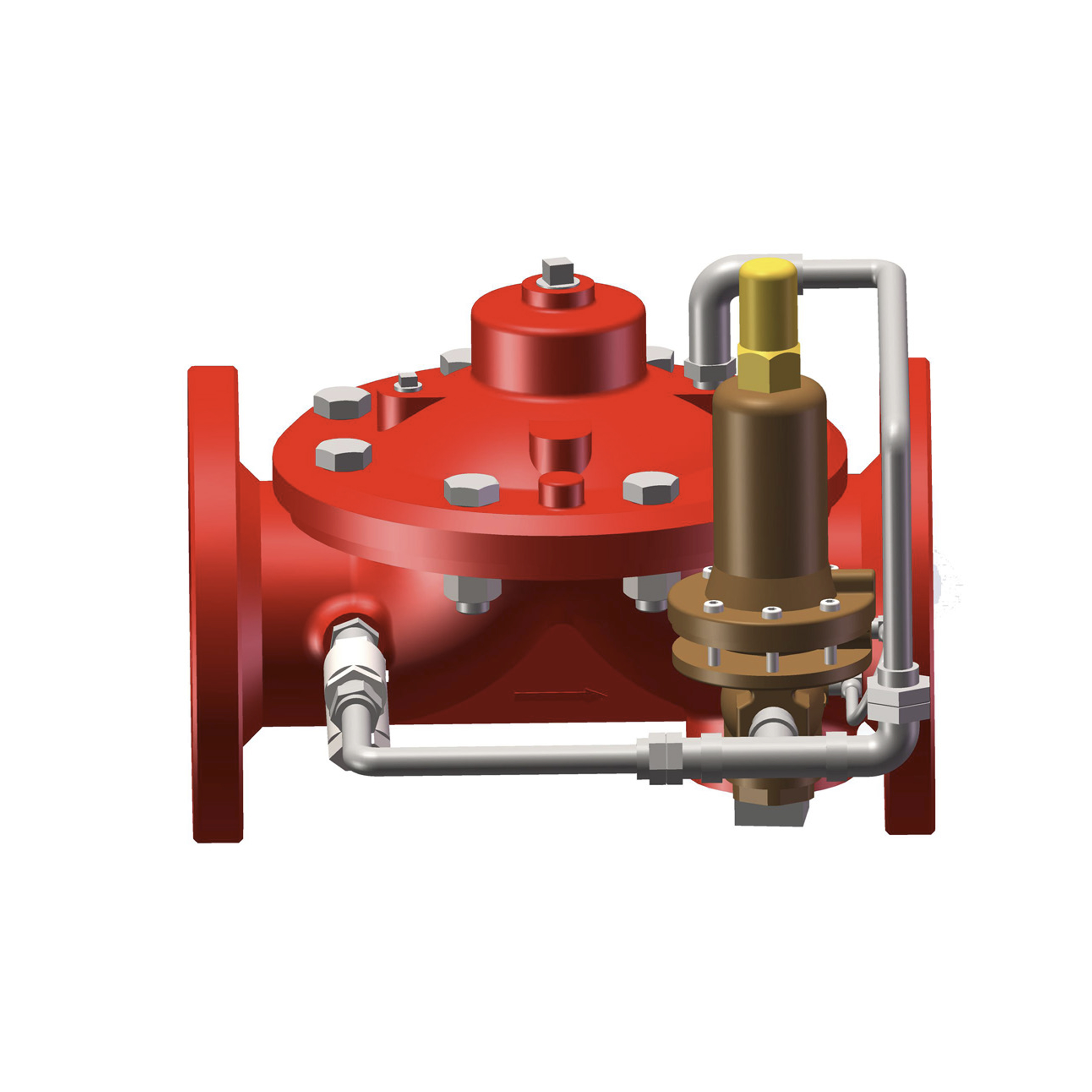

Pressure Reducing Valve Fig.505

Pressure Reducing Valve Fig.505

  • FM Approved Logo Mid Grey 300.jpg
Available Sizes DN50 (2") - DN250 (10")
Approvals FM Approved
Maximum working pressure 20.7bar (300 psi)
Temperature Range 0°C to 87°C (32ºF to 188ºF)
Set Pressure Factory pre-set outlet pressure to 8.5 bar (125 psi)
Connections PN16 Flange or Grooved

Specifications

  • Pressure Reducing Valves automatically reduce a higher inlet pressure to a steady lower outlet pressure regardless of changing flow rate and/or varying inlet pressure.
  • Operates over a wide flow range.
  • Set pressure is adjustable via a single adjustment screw on the pressure reducing pilot valve.
  • Can be maintained without removal from the pipe line.
  • Flanged to EN1092-2 PN10/PN16, ANSI B16.1 Class 125. (other available on request)
  • Grooved ends to AWWA C606 Standard.
  • Adjustment range of outlet pressure: 4.5 to 11.4 bar(65 to 165 psi)
