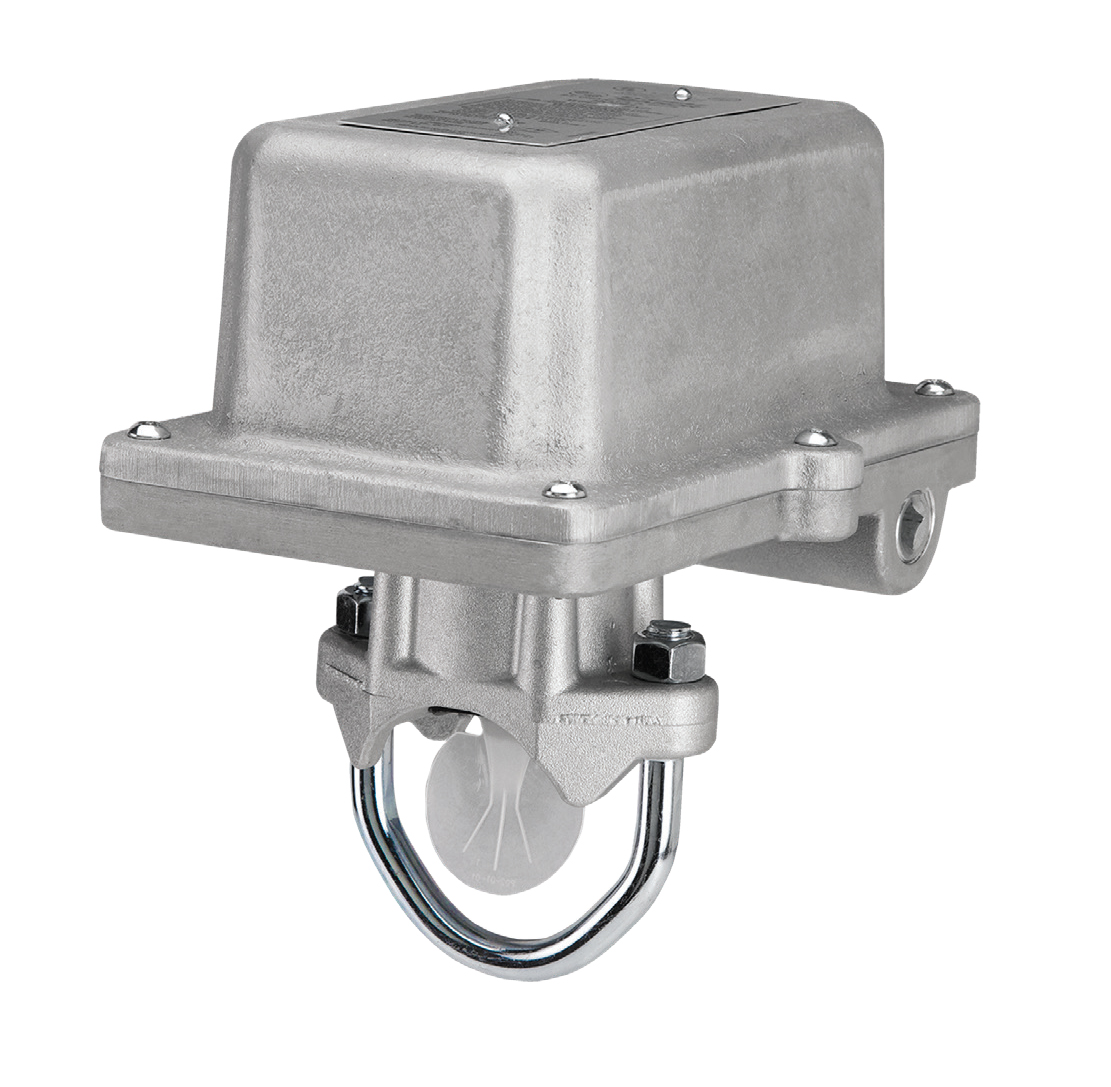

RDWFDEXP Explosion Proof Water Flow Detector
| Pressure Rating | 31bar (450psi) |
|---|---|
| Working Temperature | 0°C to 49°C (32°F to 120°F) |
| Contact Ratings | Two sets of SPDT (Form C) 10.0 A, ½ HP @ 125/250 VAC 2.5 A @ 6/12/24 VDC |
| Pipe Size | DN50 to DN200 (2" to 8") |
| Compatible Pipe | Steel water pipe, schedule 10 through 40 |
| Enclosure Rating | NEMA 4 – suitable for indoor/outdoor use |
| Maximum Surge | 5.5 m/s (18 ft/s) |
| Triggering Threshold | 15.1 - 37.9 LPM (4-10 US GPM) |
| Approvals | FM Approved, UL Listed |
The Rapidrop RDWFDEXP series is designed to handle extreme conditions, specifically crafted for environments with potentially explosive atmospheres. This specialized flow switch ensures safety by monitoring the flow of water. With its robust construction and sealed enclosure, it minimizes the risk of ignition, making it a reliable choice for high-risk environments.
