301 Swing Check Valve (Grooved)

301 Swing Check Valve (Grooved)

  • FM Approved Logo Mid Grey 300.jpg
  • UL Logo Mid Grey.jpg
  • LPCB Logo Mid grey 566j/01.jpg
  • VdS Logo mid grey 600.jpg
Size range 50mm - 300mm (2" - 12")
Body type Grooved
Maximum working pressure 17.2 bar (250psi) FM approved, 20.7 bar (300psi) UL listed, 25.0 bar (362psi) LPCB approved, 25.0 bar (362psi) VdS approved
Working temperature 0°C to 80°C (32°F to 176°F )
Body material Ductile Iron
Approvals FM, LPCB and VdS Approved, UL Listed

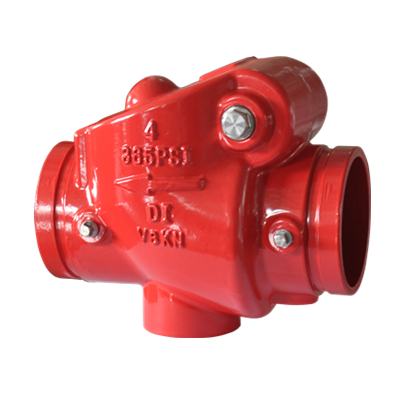

Rapidrop Figure 301 is a rubber-faced, grooved swing type check valve that allows water flow in one direction only.

A hinged clapper remains open with water flowing in one direction and automatically closes, with the help of an incorporated spring, when flow stops preventing backflow.

Rapidrop Figure 301 grooved swing check valve is suitable for installation in both horizontal and vertical (with the flow upwards) pipelines.

Connections
Groove to ISO 6182

Dimensions

Rapidrop RD301 Swing Check Valve (Grooved) dims

Sizes Dimensions (mm) Weight (Kg)
Inch mm L D1 D2
2” DN 50  171 57.1 60.3  3.3
 2.5”* DN 65  184 69.1 73.0 3.6
2.5” DN 65  184 72.2 76.1  3.6
3” DN 80  197 84.9 88.9  4.6
4” DN 100 210  110.1 114.3  7.4
5”** DN 125 248 135.6 139.7  10.0
5”*** DN 125 248 137.0  141.3 10.0
6”* DN 150 324 160.9 165.1  16.1
6” DN 150 324  163.9  168.3  16.1
8” DN 200 371  214.4 219.1 26.9
10” DN 250 457 268.3  273.0 51.9
12” DN 300 535 318.3  323.9  75.6



 *Not VdS approved

**Not FM or UL approved

***Only LPCB approved



Material Specifications

Rapidrop RD301 Swing Check Valve (Grooved) spec

Description Material
Valve Body Ductile Iron 65-45-12
Spring Stainless Steel 304
Hinge Pin Stainless Steel 420
Hinge Bushing Brass C26800
Hinge Plug Malleable Iron Zinc Plated
Clapper Arm

Stainless Steel 304(≤4”)

Ductile Iron 65-45-12 (>4”)

Clapper Gasket EPDM
Retaining Disc Stainless Steel 304
Spring Washer Stainless Steel 304
Nut Stainless Steel 304
Seat Ring Brass C83600
Drain Plug Malleable Iron Zinc Plated
Eye Bolt* Carbon Steel Zinc Plated




*DN200 / 8” and above
