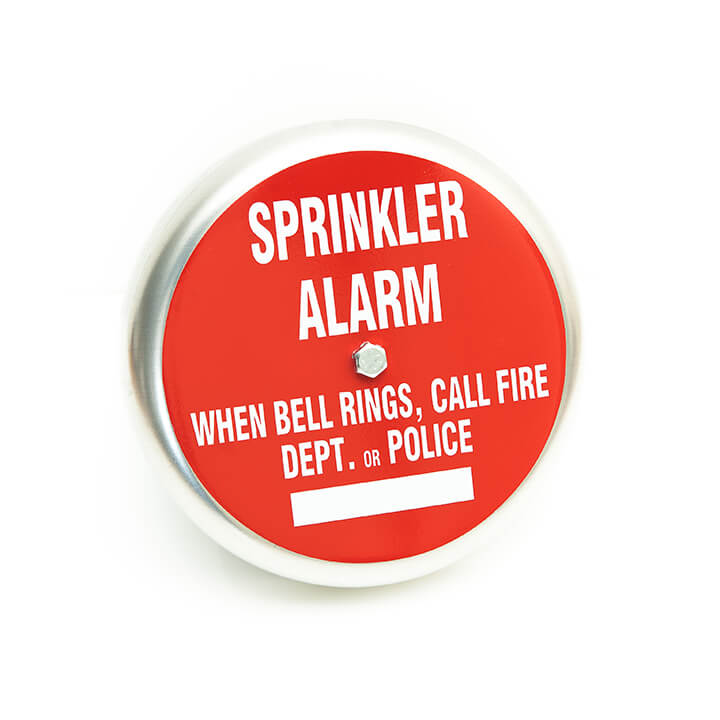

Model E Water Motor Alarm Gong
Inlet connection | 3/4" NPT |
---|---|
Outlet connection | 1" NPT |
Working pressure | 12 bar (175 psi) |
Use | Indoor or Outdoor |
Approvals | FM, UL, LPCB, CE, UKCA |
The Model E water motor alarm gong is a self-contained, hydraulically operated alarm gong which sounds continuously whenever the fire protection system is activated. Designed with functional simplicity and sound engineering practice, the Model E water motor alarm gong is always ready to function in the event
of a fire.
It can be used with both wet and dry alarm valves plus deluge valves and is suitable for internal or external installation on any wall with a thickness up to 360mm.
The Model E water motor alarm gong is supplied as standard with a Y-strainer to prevent debris in the piping system from entering the rotor.
Components
Description |
Gong Body |
Gong Frame |
Drive Bar (460mm) |
Sleeve [DN20, ¾” pipe] ( NOT PROVIDED ) |
Spacer |
Water Motor |
Inlet Pipework [DN20, ¾” pipe]( NOT PROVIDED ) |
Y-Strainer |
Gong Hex Screw |
Impeller |
Striker |
Clean Out Plug |
