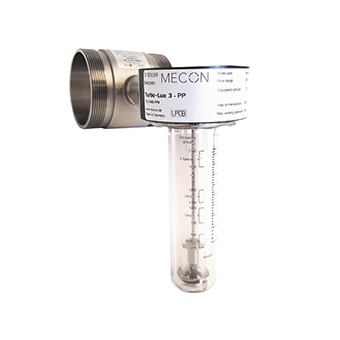

Turbo-Lux 3 PP Fire pump/Proving pipe test meter

Turbo-Lux 3 PP Fire pump/Proving pipe test meter

  • LPCB Logo Mid Grey.jpg
Approvals LPCB Approved
Nominal Size BSP 3“ thread male or 3“ grooved connection
Measuring Range 375 - 2100 lpm
Maximum Working Pressure 16 bar (232 psi)
Temperature Range +4 ºC to +50 ºC (+39ºF to +122ºF)

Turbo-Lux 3 PP Fire pump/Proving pipe test meter

Features

  • Nominal size BSP 3“ thread male or 3“ grooved connection
  • Measuring range from 375 - 2100 lpm
  • Hazard classification: OH1, OH2, OH3, OH3 special
  • Easy to install with threaded or grooved connection
  • Clever installation just with one screw (no tools)
  • Horizontal, vertical or any other flow direction possible
  • One size fits it all

Technical Data

Measuring principle Orifice plate flowmeter with variable
flowmeter as indication
Nominal Size BSP 3” thread male or 3” grooved ends
Max. Working Pressure 16 bar (232 psi)
Hydrostatically Strength
Pressure Strength
40 bar (580 psig) for 5 min. (LPCB)
Measuring Accuracy ±5.0 % of measured value (LPCB)
Temperature Range +4 ºC to +50 ºC (+39ºF to +122ºF)
Medium Water

Materials Specifications

Description Material
Orifice plate Housing tube in stainless steel with
male threaded or grooved ends
Differential Pressure Tube Brass
Float Stainless Steel
Bypass Orifice Stainless Steel
Filter Stainless Steel
Seal NBR
