OSY2 Supervisory Switch

OSY2 Supervisory Switch

  • FM Approved Logo Mid Grey 300.jpg
  • UL Logo Mid Grey.jpg
Operating Temperature 32°F to 120°F ( 0°C to 49°C)
Maximum Stem Extension 67mm (2-5/8˝)
Bracket Span H 57mm x W 171mm x D 25mm (H¼˝ x W 6¾˝ x D 1˝)
Conduit Entrances One single side open for ½˝ conduit
Contact Ratings Two sets of SPDT (Form C)
10.0 A @ 125/250VAC;
2.5 @ 6/12/24VDC
Enclosure Rating UL indoor/outdoor
Cover Tamper Switch Optional for UL model
Approvals FM Approved, UL Listed

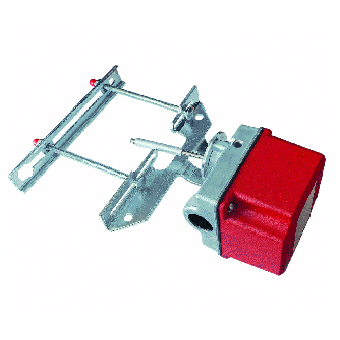

OSY2 is used to monitor the open position of an Outside Screw and Yoke (OS&Y) type gate valve.

The OSY2 consists of a rugged housing, intended for indoor and outdoor use. When installed with the actuator in the vertical position, the OSY2 is NEMA 3R rated per UL.

The OSY2 features a user-friendly mounting bracket and adjustable shaft to permit mounting to most OS&Y valves, ranging in size from 1˝ to 12˝. Its right angle design and wide bracket span provides maximum clearance for valve components, to accommodate troublesome valves. Removing the OSY2’s gate valve bracket allows the unit to monitor side-bracket style pressure reducing valves.

Installation is made easier with the OSY2’s single side conduit entrance. By providing a direct conduit pathway to the electrical source, right angle fittings are not required. Installation is further simplified by the OSY2’s adjustable length actuator, which eliminates the need for cutting the shaft

The OSY2 is equipped with tamper resistant cover screws to prevent unauthorized entry. Inside, two sets of SPDT (Form C) synchronized switches are enclosed in a durable terminal block to assure reliable performance.
