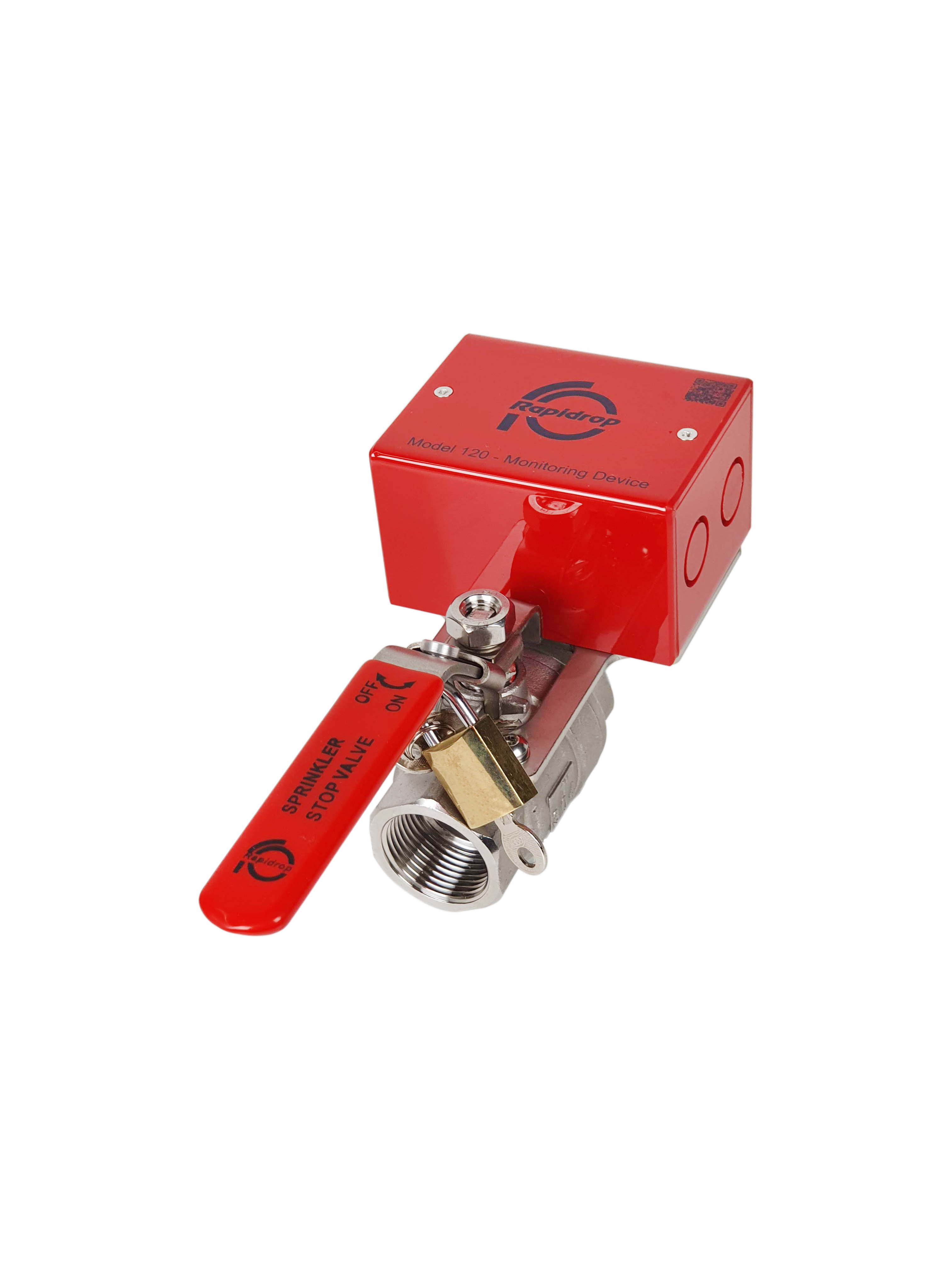

Monitored Ball Valve Model 120
| Size Range | DN25 - DN65 (1" - 2 1/2") |
|---|---|
| Max. Working Pressure | 68bar (1000psi) |
| Temperature Range | 0ºC - 80ºC |
| Connections | BSP Female Threads |
| Material Specification | Ball Valve - Stainless Steel 304 Switch Enclosure - ABS |
| IP Rating | IP54 |
Rapidrop Model 120 full bore lockable isolation ball valve designed to meet requirements of BS 9251:2021. The Contactless tamper switch is monitoring the fully open position of the valve and will send a signal to FloWatch or any other alarm device if the valve is being tampered with. Commonly used in residential systems as a zone or control valve. The full bore design allows minimal flow restriction and pressure loss.
