240 Grooved Concentric Reducer

  • FM Approved Logo Mid Grey 300.jpg
  • UL Logo Mid Grey.jpg
  • VdS Logo mid grey 2.jpg
  • cnbop.png
Size range DN32 x DN25 to DN250 x DN200 (1¼" x 1" to 4"x3")
Maximum working pressure Up to 34.4 bar (500 psi)*

*depending on size and certification, please refer to Data Sheet 8.65
Material Ductile Iron
Finish Red painted or Galvanised
Approvals FM Approved, UL Listed, VdS

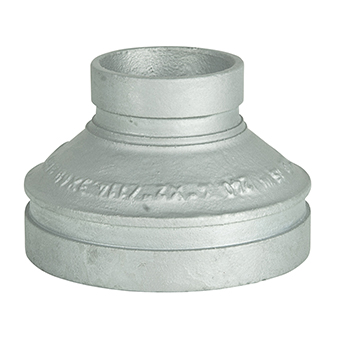

Rapidrop Grooved couplings and fittings are used in assemby of grooved piping systems. They are available in painted and galvanised finishes and are FM, UL and VdS approved. The Rapidrop type 240 concentric reducers are pressure rated to 500psi and are used where a reduction of pipe size is required. They can be used with standard and thin walled pipes.

Sizes & Dimensions

Nominal Size
mm/in		 Pipe
O.D
mm/in		 Working
Pressure
PSI/MPa		 Dimensions
mm/in
32 x 25
1¼ x 1		 42.4 x 33.7
1.660 x 1.315		 500
3.45		 64
2.50
40 x 25
1½ x 1		 48.3 x 33.7
1.900 x 1.315		 500
3.45		 64
2.50
40 x 32
1½ x 1¼		 48.3 x 42.4
1.900 x 1.660		 500
3.45		 64
2.50
50 x 32
2 x 1¼		 60.3 x 42.4
2.375 x 1.660		 500
3.45		 64
2.50
50 x 40
2 x 1½		 60.3 x 48.3
2.375 x 1.900		 500
3.45		 64
2.50
65 x 40
2½ x 1½		 76.1 x 48.3
3.000 x 1.900		 500
3.45		 64
2.50
65 x 50
2½ x 2		 76.1 x 60.3
3.000 x 2.375		 500
3.45		 64
2.50
80 x 40
3 x 1½		 88.9 x 48.3
3.500 x 1.900		 500
3.45		 64
2.50
80 x 50
3 x 2		 88.9 x 60.3
3.500 x 2.375		 500
3.45		 64
2.50
80 x 65
3 x 2½		 88.9 x 76.1
3.500 x 3.000		 500
3.45		 64
2.50
100 x 40
4 x 1½		 114.3 x 48.3
4.500 x 1.900		 500
3.45		 76
3.00
100 x 50
4 x 2		 114.3 x 60.3
4.500 x 2.375		 500
3.45		 76
3.00
100 x 65
4 x 2½		 114.3 x 76.1
4.500 x 3.000		 500
3.45		 76
3.00
100 x 80
4 x 3		 114.3 x 88.9
4.500 x 3.500		 500
3.45		 76
3.00
