DRG004 Flange Adaptor
| Size | 100mm (4") |
|---|---|
| Working pressure | 20.7 bar (300 psi) |
| Finish | Galvanised |
| Approvals | FM Approved, UL Listed |

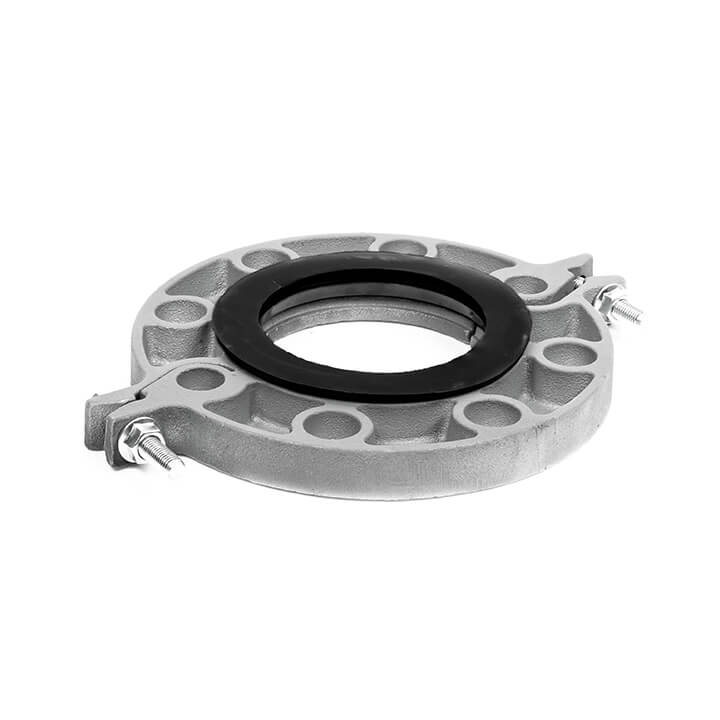

Rapidrop 4" flange adaptor is used to connect an inlet breeching valve to grooved pipe work.
Dimensions
| Nominal Size | 100mm (4") | |
| Pipe O.D | 114.3mm (4.500") | |
| Working Pressure | 200psi (1.6MPa) | |
| Dimensions |
A | 248mm (9.763") |
| B | 23mm (0.906") | |
| C | 220mm (8.661") | |
| D | 180mm (7.086") | |
| Bolt Size No.-Size mm |
8-M16 | |
