DRG002 Grooved Elbow

  • FM Approved Logo Mid Grey 300.jpg (1)
  • UL Logo Mid Grey 144.jpg (1)
Size 100mm (4”)

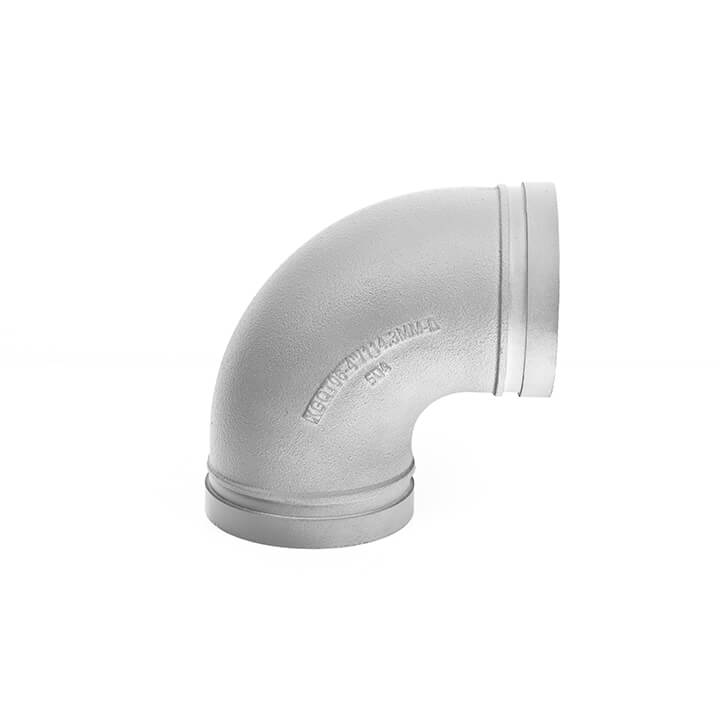

Variations 90° Elbow

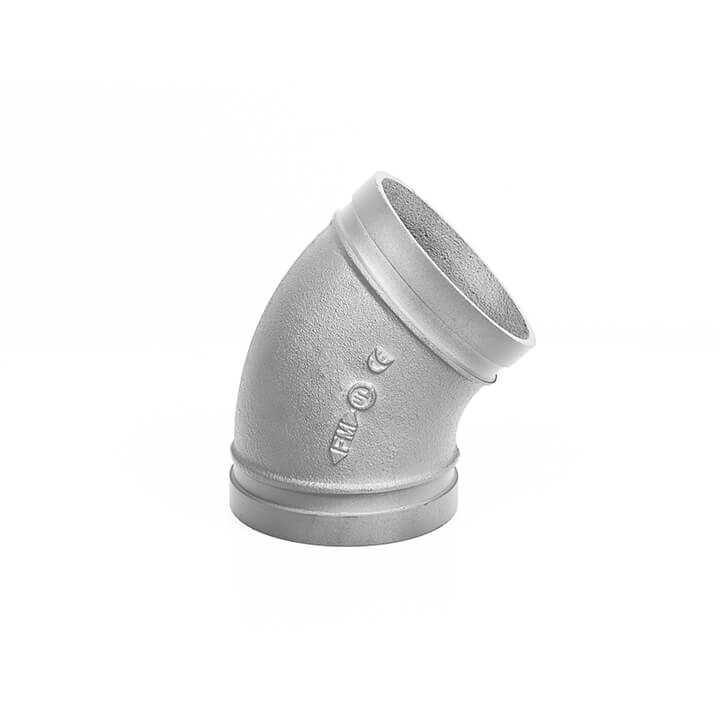

45° Elbow
22.5° Elbow
11.25° Elbow
Working pressure 20.7 bar (300 psi)
Finish Galvanised
Approvals FM Approved, UL Listed

Rapidrop 90° / 45° / 22.5° / 11.25° 4" grooved elbows are used within a dry or wet riser system

Dimensions

  90° Elbow 45° Elbow 22.5° Elbow 11.25° Elbow
Nominal Size
mm/in		 100mm (4")
Pipe
O.D mm/in		 114.3mm (4.500")
Dimensions
(L) mm/in		 127mm (5")
