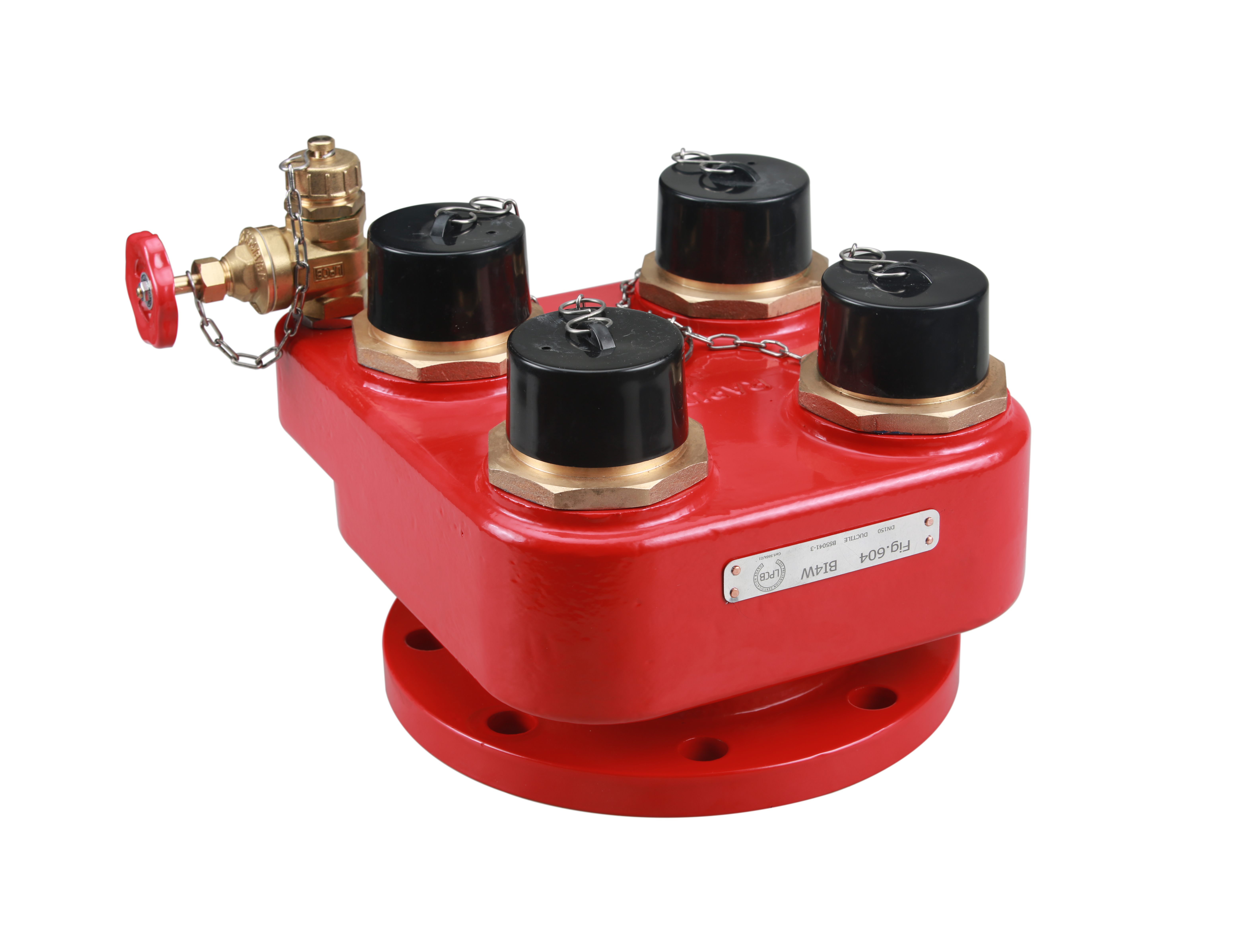

4 Way Inlet Breeching Valve Fig.604
| Flange Size | DN150 (6") |
|---|---|
| Maximum Working Pressure | 10 bar (145 psi) |
| Maximum Test Pressure | 20 bar (290 psi) |
| Working Temperature | 0ºC to 38ºC ( |
| Body Material | Ductile Iron |
| Standards | Manufactured in accordance with BS 5041-3 |
| Approvals | LPCB Certificate |
An Inlet breeching valve is installed at ground level to provide a connection to the water supply. The system is usually dry and charged by the fire brigade in an emergency. The valve have 4 inlets which are 2 ½” male instantaneous connections to BS336 and fitted with non-return valves, a 1” drain valve, caps and chains. 4 way inlet breeching valves can be installed in the vertical or horizontal position
