215 Butterfly Valve (Wafer)

215 Butterfly Valve (Wafer)

  • FM Approved Logo Mid Grey 300.jpg
  • UL Logo Mid Grey 144.jpg
  • VdS Logo mid grey 600.jpg
  • gost logo 300.jpg
Size range 50mm - 300mm (2" - 12")
Body type Wafer
Working pressure 20.7 bar (300 psi) FM, 20.7 bar (300 psi) UL, 16.0 bar (232 psi) VdS
Working temperature 0°C to 80°C (32°F to 176°F)
Body material Ductile Iron
Shaft material Stainless steel
Flying Lead 1 meter
Approvals FM Approved, UL Listed, VdS, Gost

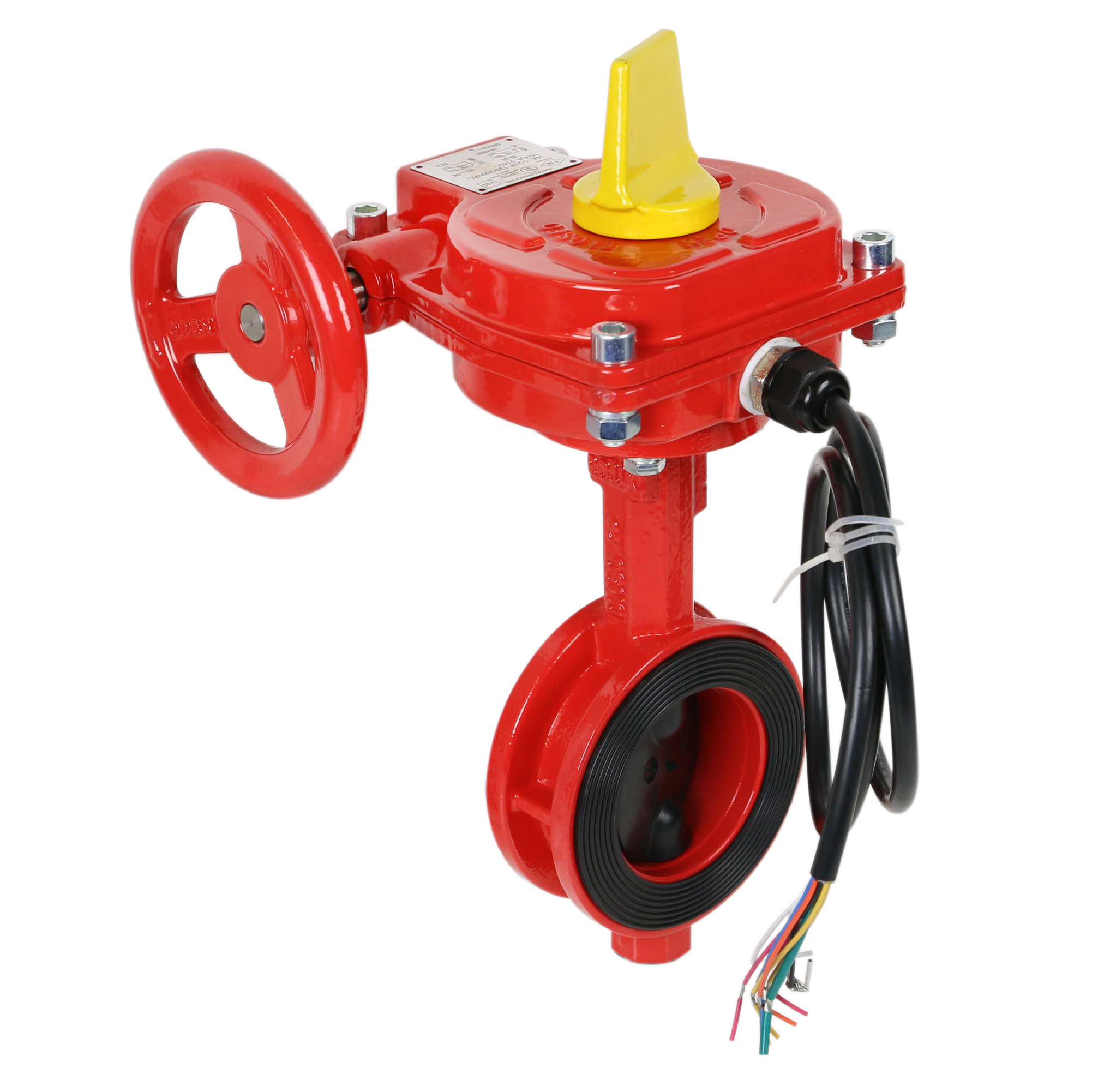

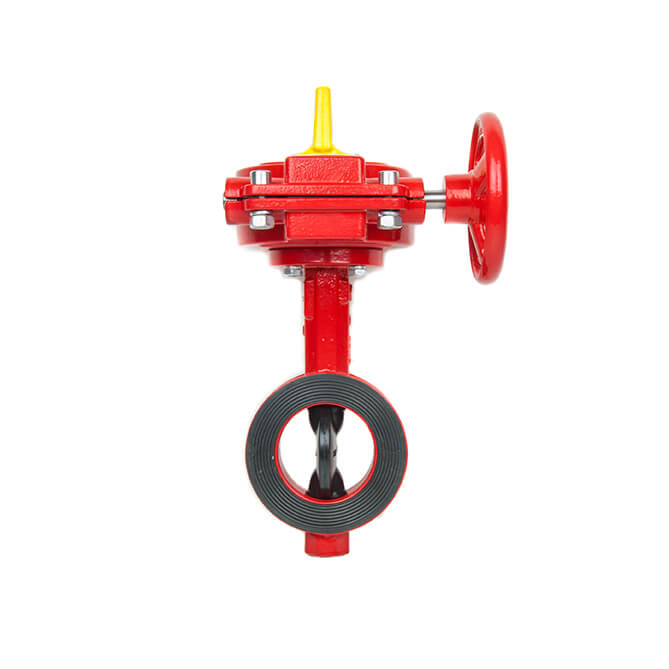

Rapidrop Figure 215 Wafer Butterfly Valve is a rotary type valve with a visual indication of whether the valve is in a fully open position or not. Butterfly valves are commonly used in fire protection systems as system control valves, sectional or pump water control valves.

These valves have been designed with minimum flow restriction and pressure loss when in a fully open position. To reduce the risk of a water hammer Rapidrop Butterfly Valves are provided with a slow close hand wheel operation gearbox.

Valves supplied as standard with a 1m flying lead.

Dimensions

Sizes Dimensions (mm) Weight (Kg) Pressure Rating Approvals
inch mm A B C D E F G FM UL VdS
2" DN 50 141 65 43±2 93 123 127 202 8.5

300PSI

20.7 bar

300PSI

20.7 bar

232 PSI

16 bar

2.5" DN 65 153 71 46±2 104 123 127 202 8.9
3" DN 80 158 81 46±2 124 123 127 202 9.5
4" DN 100 176 95 52±2 150 123 127 202 10.9
5" DN 125 191 111 56±2 177 123 127 202 12.6
6" DN 150 203 133 56±2 205 123 127 202 16.3
8" DN 200 244 164 60±2 257 123 185 260 21.7
10" DN 250 273 196 68±2 316 123 185 260 30.8  -
12" DN 300 311 226 78±2 370 132 203 298 44.6  -


Recommended Bolt Tightening Torque

Size Recommended Minimum Torque
2”-4”
DN50-DN100
30-40 Nm
5”-8”
DN125-DN200
45-70 Nm
10”
DN250
75-100 Nm
12”
DN300
110-150 Nm

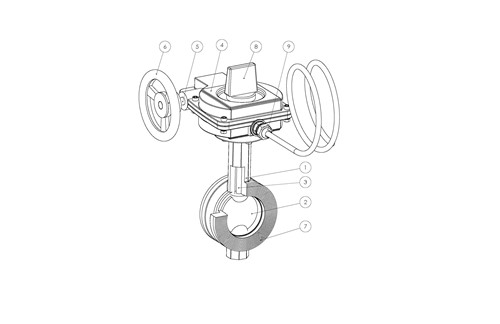

Material Specification

Rapidrop RD215 Butterfly Valve (Wafer) spec

Description Materials
Valve Body Ductile Iron
Disc Ductile Iron + EPDM
Stem Stainless Steel
Gearbox Ductile Iron
Handwheel Shaft SS431
Handwheel Ductile Iron
Seal EPDM
Indicator Ductile Iron
Cable Gland Plastic
