Dry Riser Vertical Inlet Architrave & Door Cabinet

Cabinet type Vertical Inlet architrave & door type cabinet
Size Height 595mm (23.4")
Width 395mm (15.5")
Depth 80mm (3.1")
Finish Red RAL 3002 or Stainless steel (Bespoke finishes available)
Standards Designed & manufactured to BS5041 part 5

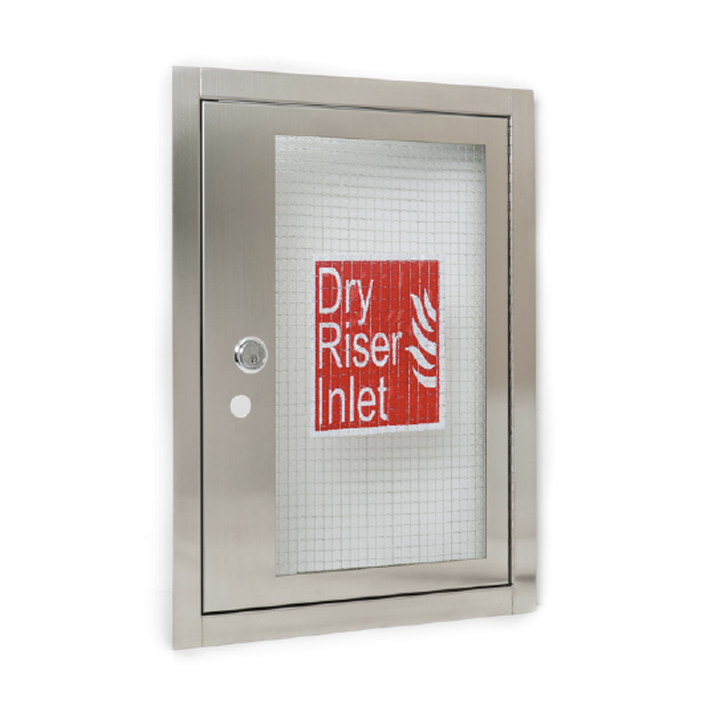

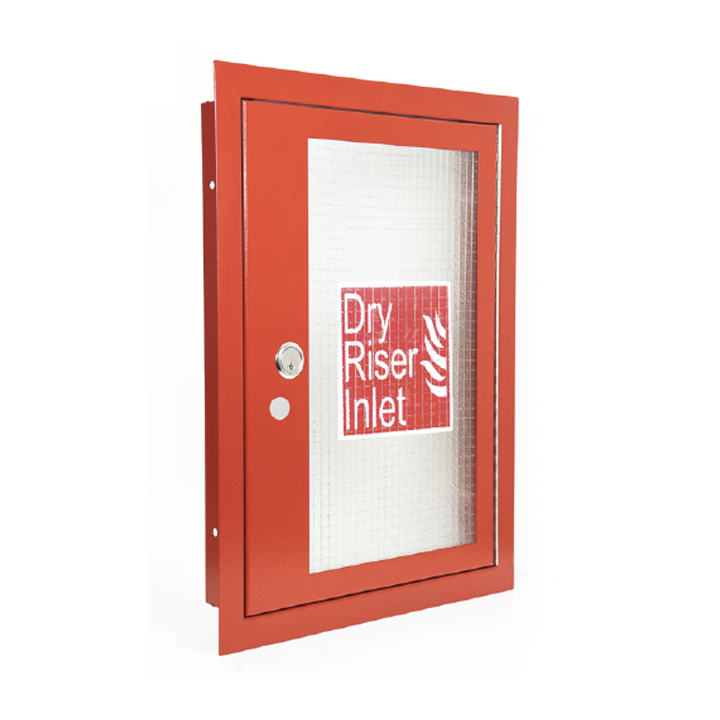

The DRC001 & DRC007 vertical inlet cabinets are designed to be recessed into the wall for easy access to the inlet breeching valve. The cabinet has a 38mm surrounding flange and is available in red RAL3002 (DRC001) or in Stainless Steel (DRC007) finish.

DRC001 cabinet is painted with Epoxy RAL3002 powder paint with UV protection to prevent colour fading.

The inlet cabinet and breeching inlet should be positioned as closely as possible to the rising main in order to reduce the pressure loss and within easily accessible reach of the attending fire appliance which should be in an un-obscured sight of fire crews and no more than 18 metres away from the nearest vehicular access.

The cabinets have a wired Georgian glass door complete with a slam shut lock and stainless steel piano hinge.

Dimensions

Dimensions

Approx Weight
Kg

High mm Width mm Depth mm
595 395 80 10

Specifications

 DRC001 Red / DRC007 Stainless Steel
Cabinet & Door Carbon steel / Stainless steel 304
Finish Red RAL 3002 / Stainless steel
Architrave 30mm wide all round
Glass 6mm Georgian wired
Lock Slam shut lock keyed alike
Hinge Stainless Steel piano hinge



Material Specifications

Item Part Description Qty Material
1 Cabinet Shell 1 Carbon steel / Stainless steel 304
2 Hinge 1 Stainless steel 304
3 Rivet 10 Aluminium
4 Door 1 Carbon steel / Stainless steel 304
5 Press Plate 1 Carbon steel / Stainless steel 304
6 Locking Nut 6 Copper
7 Wire Glass 1 Glass 540 x 265 x 6mm
8 Latch Lock 1 Assembly
9 Locking Screw 3 Steel BZP
10 Signage
