Dry Riser Vertical Outlet Architrave & Door

Cabinet type Vertical Outlet architrave & door cabinet
Size Height 630mm (24.8")
Width 460mm (18.1")
Depth 80mm (3.1")
Finish Red RAL 3002 or Stainless steel (Bespoke finishes available)
Standards Designed & manufactured to BS5041 part 4

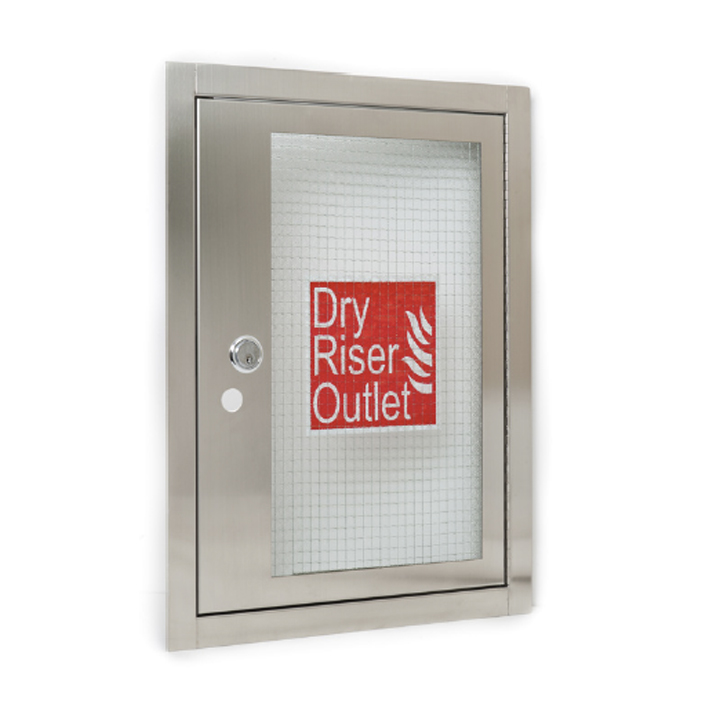

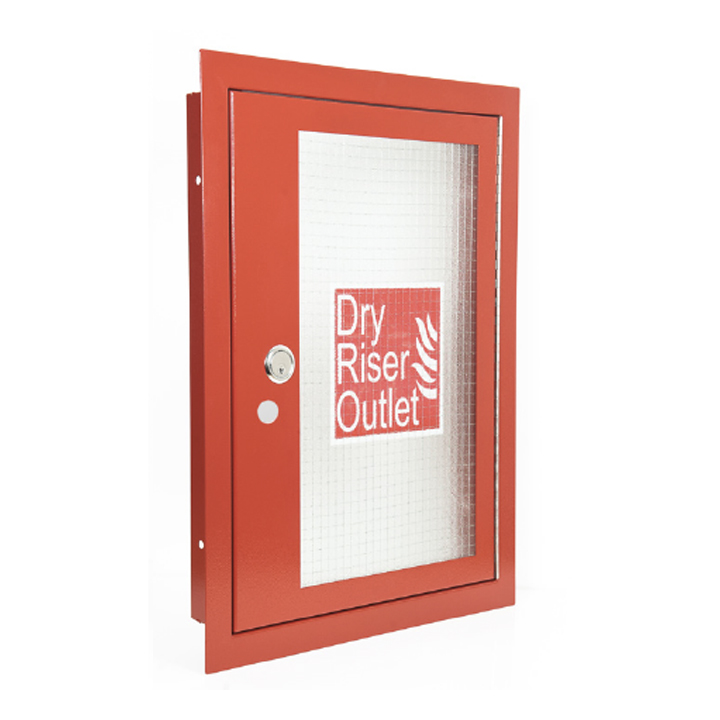

The DRC004 & DRC005 vertical outlet cabinets are designed to be recessed into the wall for easy access to the dry riser outlet valve. The cabinet has a 38mm surrounding flange and is available in red RAL3002 (DRC004) or in Stainless Steel (DRC005) finish.

DRC004 cabinet is painted with Epoxy RAL3002 powder paint with UV protection to prevent colour fading.

The cabinets have a wired Georgian glass door complete with a slam shut lock and stainless steel piano hinge.

Dimensions

Dimensions Approx Weight
Kg
High mm Width mm Depth mm
630 460 80 10



Specifications

 DRC004W Red / DRC005W Stainless Steel
Cabinet & Door Carbon steel / Stainless steel 304
Finish Red RAL 3002 / Stainless steel
Architrave 30mm wide all round
Glass 6mm Georgian wired
Lock Slam shut lock keyed alike
Hinge Stainless steel piano hinge


Material Specifications

Part Description Qty Material
Cabinet Shell 1 Cold Rolled Low Carbon Stee
Hinge 1 SUS304
Blind RIvet d 3.2 10 Aluminium
Door 1 Cold Rolled Low Carbon Stee
Press Plate 1 1.5mm Colour Zinc Plate
M5 Hexagon Locking Nut 6 Copper
Wire Glass  1 Glass 575 x 332 x 6mm
Latch Lock 1 Assembly
M4 x 16 Pan Head Screw 3 Steel
Signage 1
