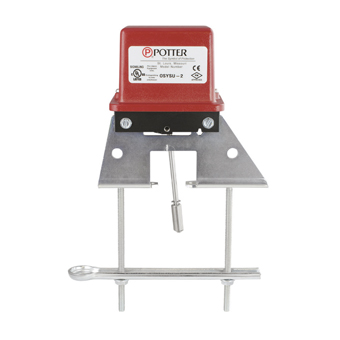

OSYSU-1 & OSYSU-2 Outside Screw and Yoke Valve Supervisory Switch Model

OSYSU-1 & OSYSU-2 Outside Screw and Yoke Valve Supervisory Switch Model

  • UL Logo Mid Grey 144.jpg
  • CE Logo Mid Grey 144.jpg
  • FM Approved Logo Mid Grey 300.jpg
Approvals FM and CE Approved, UL Listed
Operating Temperature Range -40ºC to 60ºC (-40ºF to 140ºF)
Weight 0.73 kg (1.6 lbs)

The OSYSU is used to monitor the open position of an OS&Y (outside screw and yoke) type gate valve. This device is available in two models; the OSYSU-1, containing one set of SPDT (Form C) contacts and the OSYSU-2, containing two sets of SPDT (Form C) contacts. These switches mount conveniently to most OS&Y valves ranging in size from 2” to 12” (50mm to 300mm). They will mount on some valves as small as ½” (12,5mm).

The cover is held in place by two tamper resistant screws that require a special tool to remove. The tool is furnished with each device.
