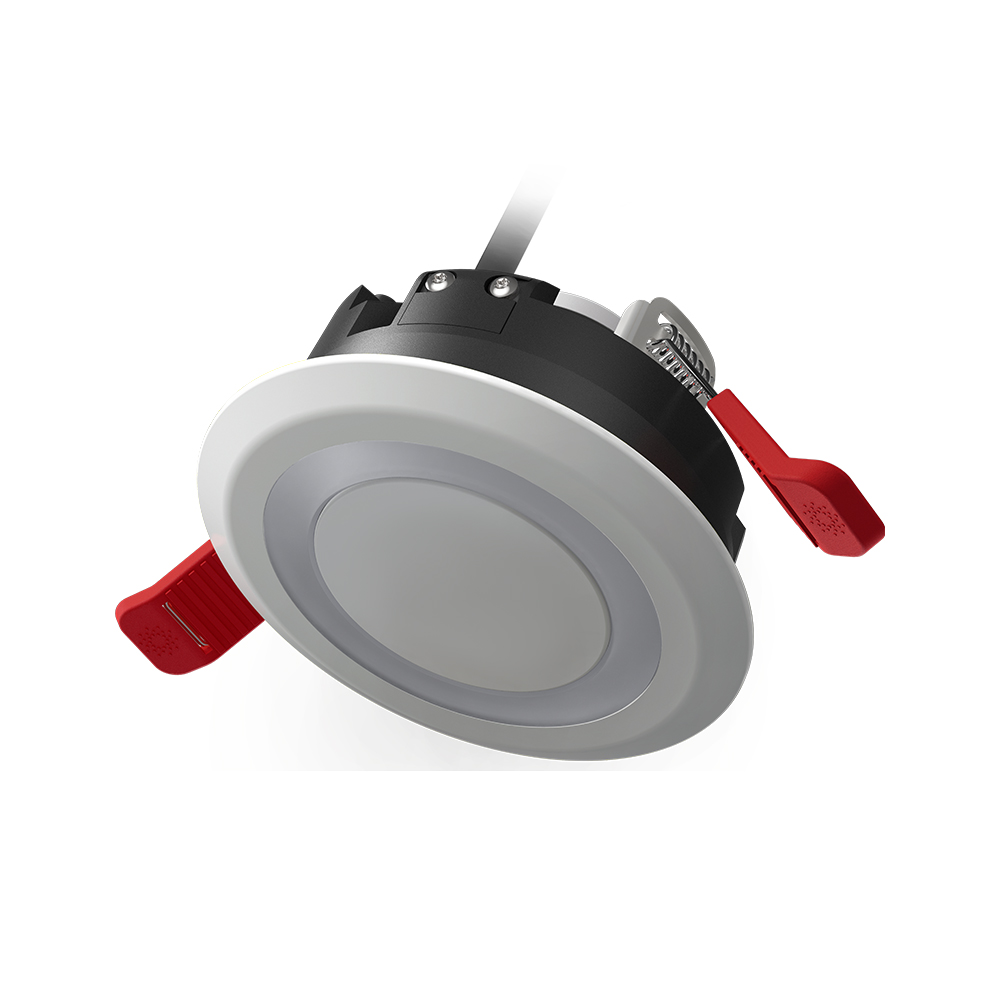

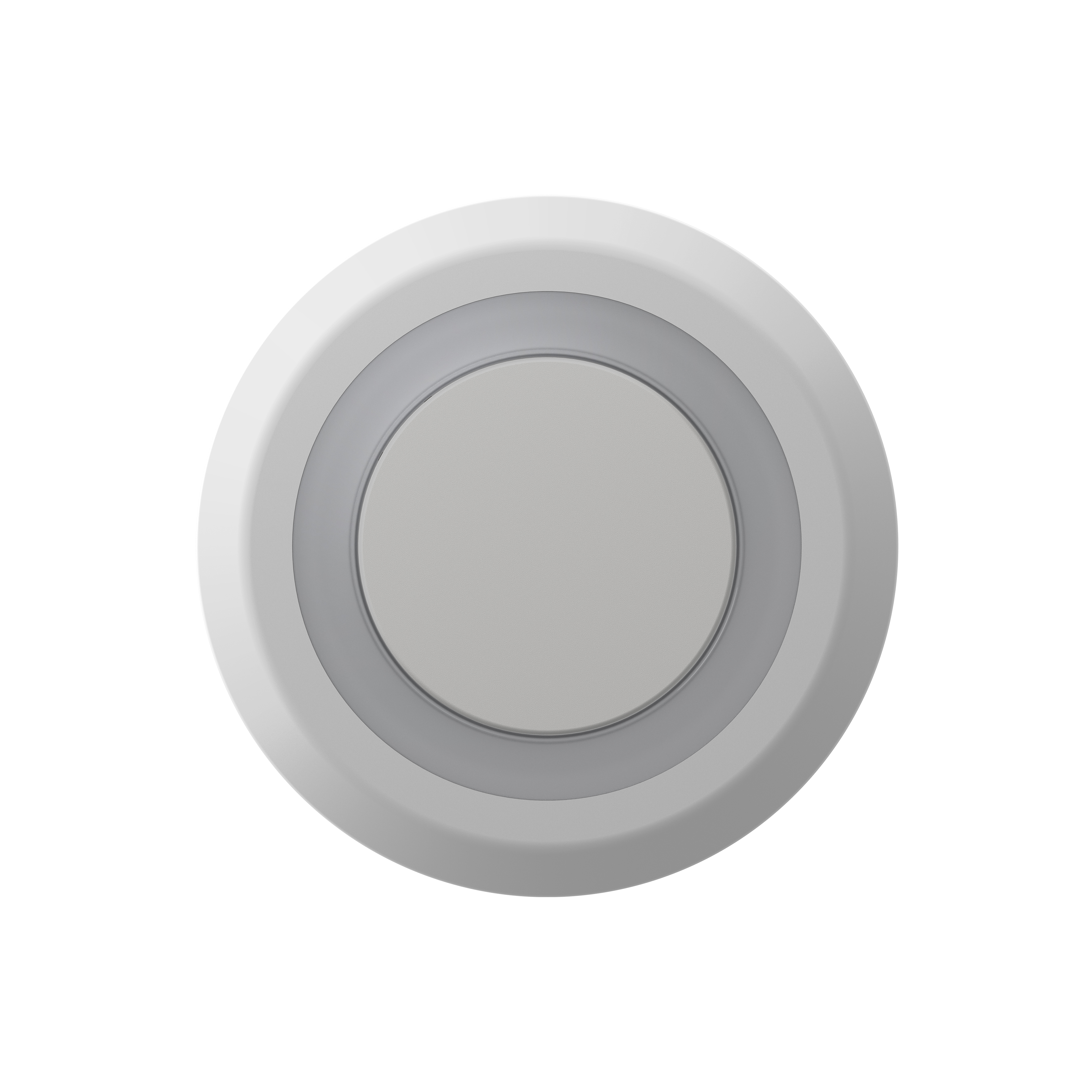

Lumi-Plugin Unit

IP Rating IP65 light only (exposed surface), IP54 with sprinkler installed (exposed surface), IP20 whole product
Fire Rating 30/60/90
Lumens 600L
Colour Temp 3000k - Warm White, 4000k - Cool White
Average Lifespan 50,000 hours
Power Output 8W

LED Light with life safety and lifestyle plugins

Typically fire suppression systems, fire detection and emergency lights all compete with interior lighting for the same space within the ceiling layout. Now they don’t have to.

The compact and simplistic design of Lumi-Plugin LP110, allows it to seamlessly blend into its surroundings combining and or enabling services without compromising the property’s interior.

Lumi-Plugin's multi-functional design can reduce initial installation costs due to combined systems rather than separate installations, reducing the quantity and size of openings required in the ceiling structure. Additional lifetime savings can be achieved due to low voltage LEDs and PIR sensor plugins.

The unique patented design where the luminaire fully surrounds the sprinkler head ensures that the future operation of the sprinkler head cannot be compromised from the application of paint or sealant accidently being applied.

 Multiple Plugins

  • Lumi-Plugin has been designed to help you get to a place of safety. Emergency lighting provides regular visibility for up to 3 hours.
  • Designed to work with both concealed and semi-concealed fire suppression systems.
  • Apollo and Cavius provide a range of smoke and heat detection systems ranging from DIY retrofit to integrated building systems.
  • Ideal for rooms and spaces that are not used regularly. PIR sensors activate the lighting when the space is in use, reducing energy.
  • KitSound high quality ceiling speakers provide a wireless speaker system plugin that will integrate Amazon Alexa, Google Home and Homepod.

IP65 Rating

With an IP54 rating, Lumi-Plugin is both dust proof and water resistant to ensure the longevity of the product. Sprinkler heads should not be installed where they may be subjected to a corrosive environment including chlorine ion and chloride. IP65 rating applies to light only (exposed surface).

Fire Rated 30/60/90

Lumi Plugin exceeds the requirements of BS EN 1365-2: 2014, fire resistance tests for loadbearing elements, floors and roofs. These tests were conducted at the Building Research Establishment (BRE) based in Watford, United Kingdom.

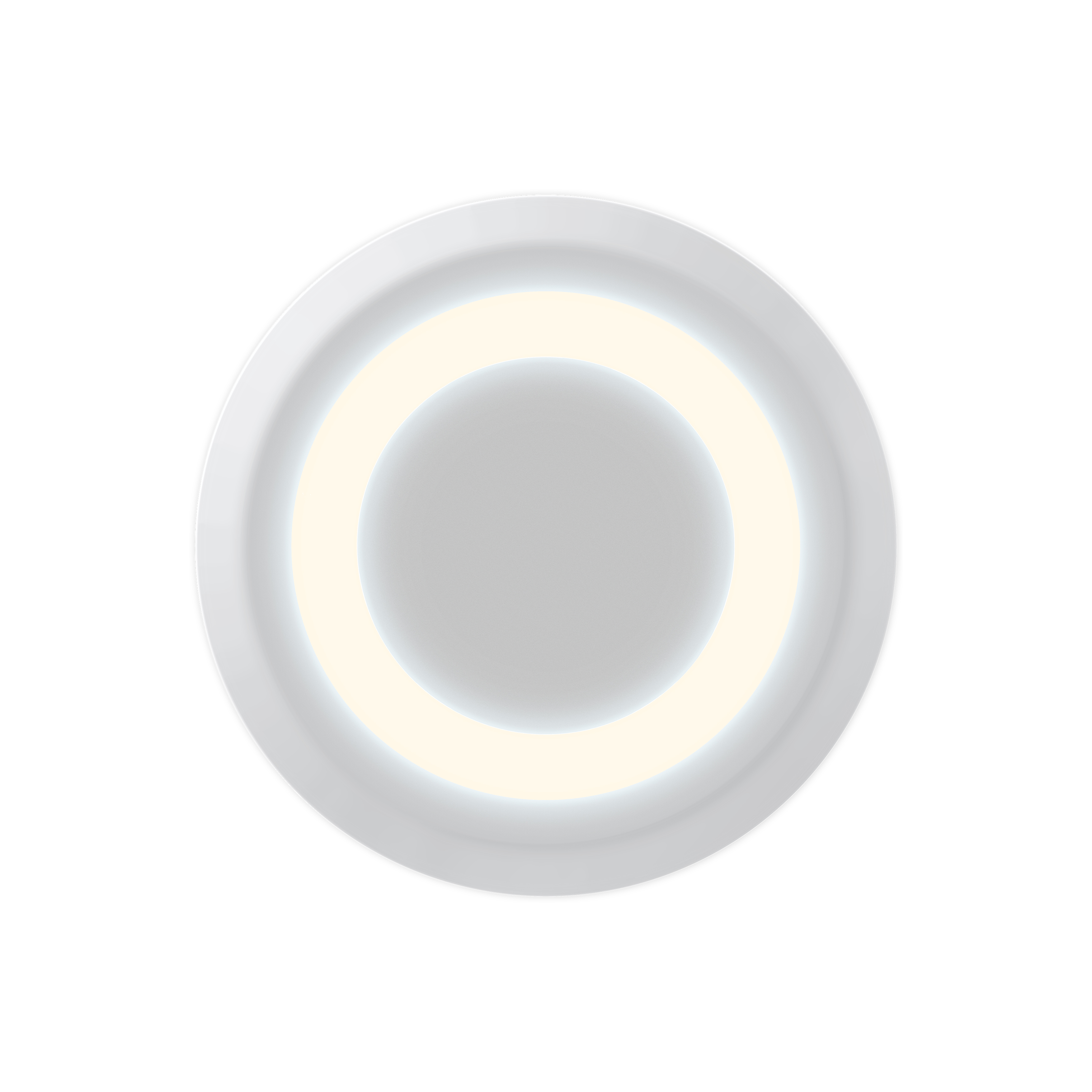

Cool White or Warm White Light

Suitable for both domestic and commercial properties with 3000K or 4000K variants available.


Tests / Approvals

• Loaded floor test to EN 1365-2: 2014
• CE Marked
