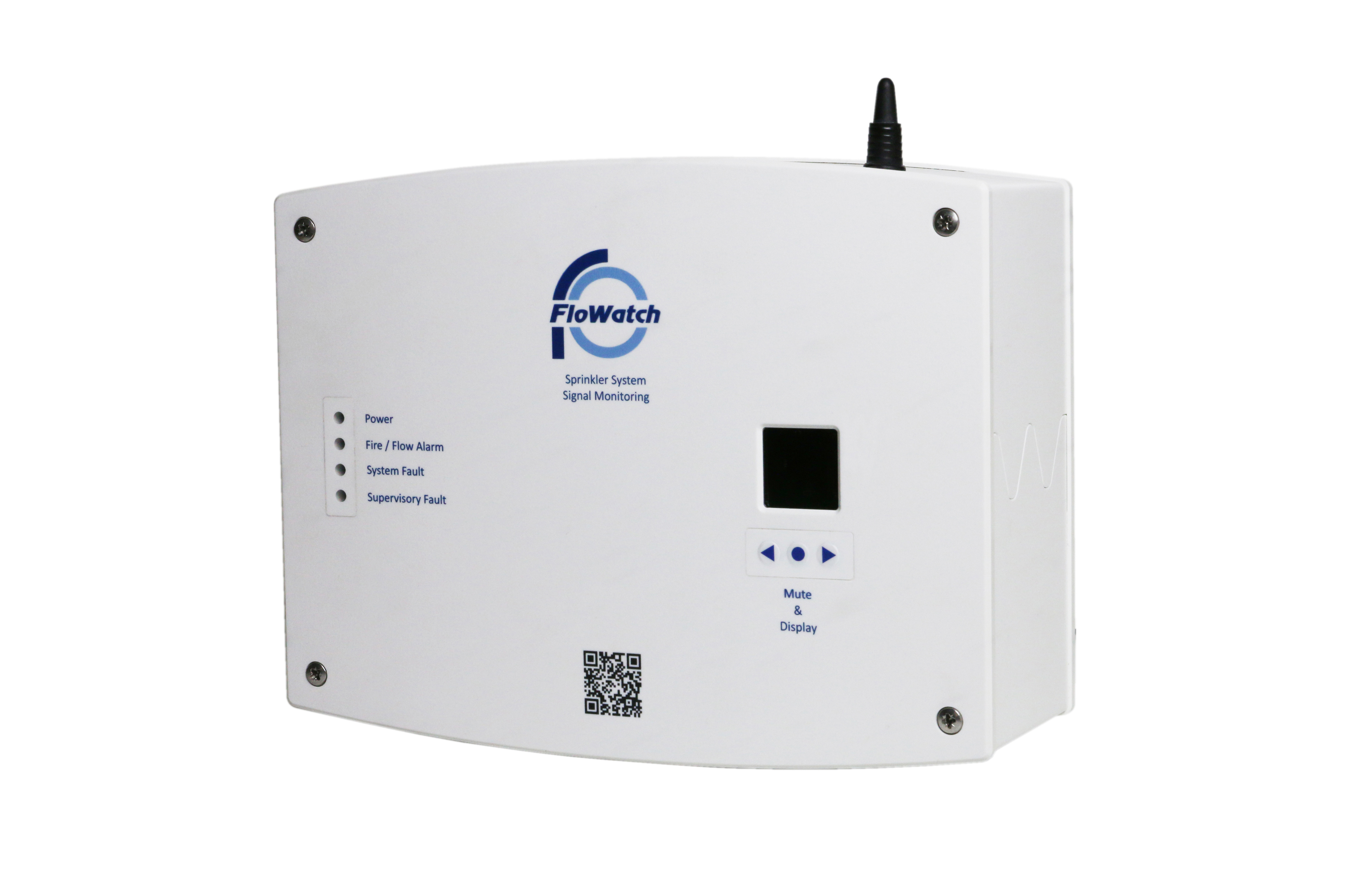

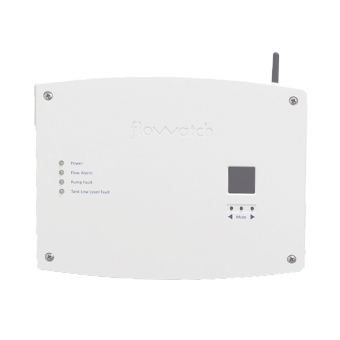

FloWatch 9251 Master Panel

FloWatch 9251 Master Panel

Approvals Meets requirements of BS9251:2014
Alarm Visual and Audible
Mounting Surface Mounted
Electrical Supply 240 Volts Single Phase
Monitoring Accessed remotely from PC and smartphone

The FloWatch 9251 is a bespoke fire sprinkler control and monitoring system which monitors flow switches, pump status and tank level.

In the event of an activation of a flow switch, pump failure or low-water level within the storage tank, an audible and visual alarm will be raised on the Panel.

Features

  • Monitors up to 4 flow switches as a standard unit

  • Monitors up to 68 flow switches with the addition of expansion modules

  • Audible alarm on activation of a flow switch

  • Clearly identifies location of flow switch that has been activated

  • Monitors pump (if installed) and alerts building occupants if a fault with the pump occurs

  • Monitors cold water tank (if installed) for low water content and alerts building occupants if the water supply is low

  • Can be interfaced with building fire alarm system if required

  • Can be accessed remotely from PC / smartphone to see the status of sprinkler system

  • Sprinkler system can be connected to a remote monitoring system which will prompt an engineer to attend in the event that a fault on the system occurs

  • MODBUS compatible via RS485 for interface with building management systems (BMS)

Electrical Supply: 240 Volts Single Phase

Height: 221mm

Width: 289mm

Depth: 97mm

Mounting: Surface Mounted
