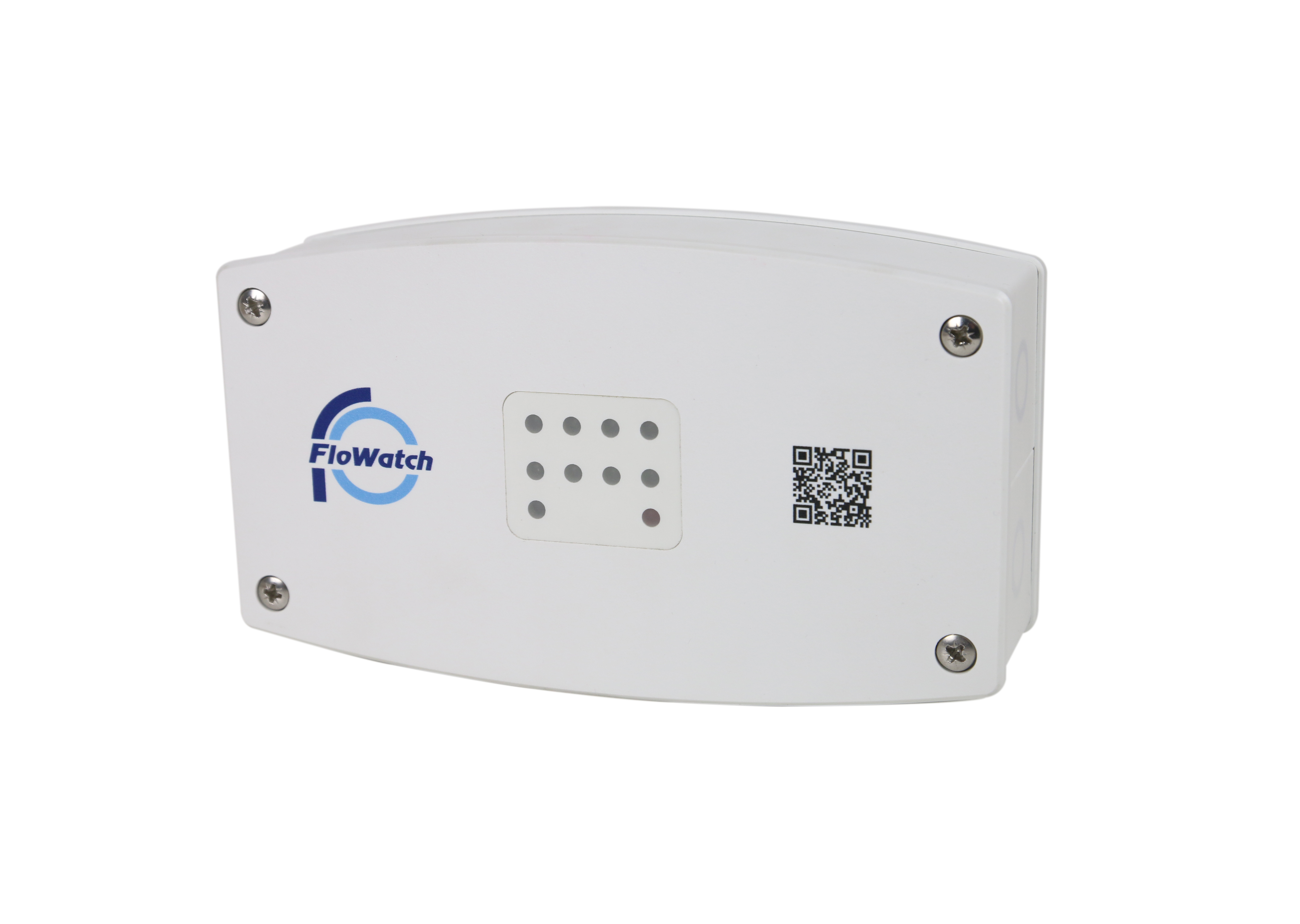

FloWatch 8 Way Expansion Module

FloWatch 8 Way Expansion Module

Approvals Designed to meet the requirements of BS9251:2021
Alarm or Fault Visual LED and operates the master panel
Inputs 8 Configured inputs

Expansion Modules

  • 8 Way expansion unit allows connection of 8 ‘configured inputs’

  • 8 way expansion units have built in temperature sensors to identify the temperature of the riser

  • No power required to expansion unit - powered via master panel wiring

  • Visual identification (LEDs of relevant input)

  • Addressable - all expansion modules and associated inputs are individualy identified

Note: If an input connected to the expansion modules is in alarm or fault state, the master panel will display the alarm/fault on the LCD screen, emit the sounder and activate the relevant LED.

Electrical Supply: 240 Volts Single Phase
Height: 500mm
Width: 300mm
Depth: 150mm
Mounting: Surface Mounted
