Cast Steel Swing Check Valve
| Sizes | DN65 (2 1/2") to DN200 (8") |
|---|---|
| Connections | PN40 Flange as per BS EN 1092-1 |
| Maximum Working Pressure | 46bar (670psi) at 100°C (Class 300) |

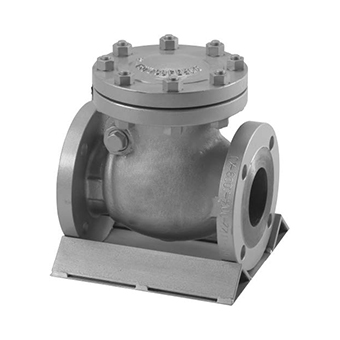

Rapidrop Cast Steel Swing Check Valve - Class 300
Features
- Valve according to BS1868
- End to End dimensions according to ANSI B16.10
- Eye bolt for sizes bigger than 3”

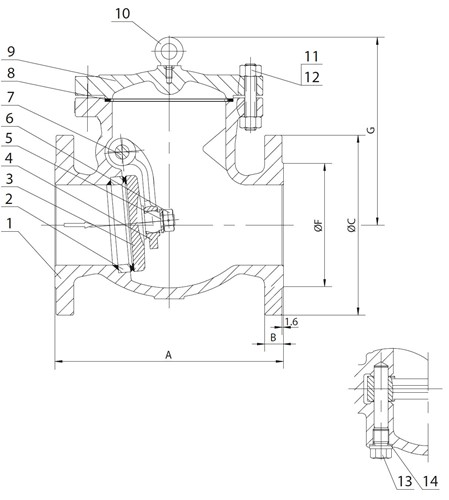

Material Specifications
| Part No. | Description | Gate |
| 1 | Body | Cast Steel |
| 2 | Body Ring | Carbon Steel |
| 3 | Disc | Carbon Steel |
| 4 | Hinge | Cast Steel |
| 5 | Gasket | Stainless Steel |
| 6 | Nut | Stainless Steel |
| 7 | Pin | Stainless Steel |
| 8 | Gasket | Spiral Wound |
| 9 | Bonnet | Cast Steel |
| 10 | Eye Bolt | Carbon Steel |
| 11 | Nut | Steel |
| 12 | Bolt | Steel |
| 13 | Gasket | Stainless Steel |
| 14 | Plug | Stainless Steel |
