302 PN16 Swing Check Valve (Flanged)

302 PN16 Swing Check Valve (Flanged)

  • FM Approved Logo Mid Grey 300.jpg
  • UL Logo Mid Grey.jpg
  • LPCB Logo Mid grey 566j-02.jpg
Size range 50mm - 300mm (2" - 12")
Body type Flanged
End connections PN16 Flange to BS EN 1092-2:1997
Maximum working pressure 16 bar (232 psi) FM approved, 20.7 bar (300 psi) UL Listed, 25.0 bar (362 psi) LPCB approved
Working temperature 0°C to 80°C (32°F to 176°F )
Body material Ductile Iron
Approvals FM and LPCB Approved, UL Listed

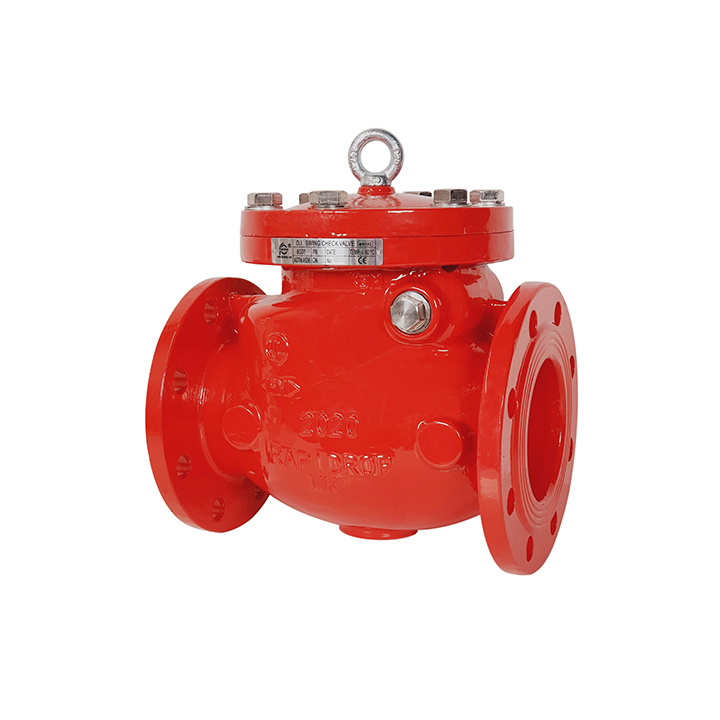

Rapidrop Fig. 302 PN16 is a rubber-faced, flanged swing type check valve that allows water flow in one direction only.

A hinged clapper remains open with water flowing in one direction and automatically closes when flow stops preventing backflow.

Removable cover allows easy access for inspection and maintenance.

These valves are suitable for installation in both horizontal and vertical (with the flow upwards) pipelines.
Rapidrop Fig. 302 PN16 flanged swing check valve is available with PN16 and PN25 flanges.

Applications
Potable water, sewage disposal, water distribution service & feed lines, irrigation and fire protection pipe systems

Connections
PN16 Flange to BS EN 1092-2:1997
PN25 Flange available on request

Dimensions

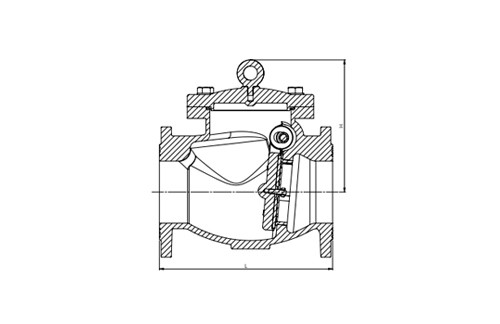

Rapidrop RD302 PN16 Swing Check Valve (Flanged) dims

Sizes Dimensions (mm) Weight (Kg)
Inch mm L H
2” DN 50 203 133 13.9
2.5” DN 65 216 150 16.4
3” DN 80 241 160 19.2
4” DN 100 292 218 27.3
6” DN 150 356 290 47.9
8” DN 200 495 330 71.2
10” DN 250 622 350 118.6
12” DN 300 698 376 171.8



Material Specifications

Description Material
Valve Body Ductile Iron 65-45-12
Cover Ductile Iron 65-45-12 1
Bolt Carbon Steel Zinc Plated
Washer Carbon Steel Zinc Plated
Eye Bolt * Carbon Steel Zinc Plated
O-ring NBR /EPDM
Seat Ring Bronze C83600
Hinge Pin SS304
Hinge Bushing Brass C36000
Clapper Arm Ductile Iron 65-45-12
Clapper Gasket EPDM
Retaining Disc Ductile Iron 65-45-12
Spring Washer SS304
Nut SS304
Washer Nylon
Plug Carbon Steel Zinc Plated
Drain Plug Copper Alloy
Stud SS304

*DN100 /4” and above
