Standard Duty Loop Hanger

Standard Duty Loop Hanger

  • UL Logo Mid Grey 144.jpg (1)
  • FM Approved Logo Mid Grey 300.jpg (1)
  • VdS Logo mid grey 600.jpg
Size range ½” (15 mm) - 2” (80 mm)
Approvals FM and Vds Approved, UL Listed
Material Steel
Finish Pregalvanized

General Description

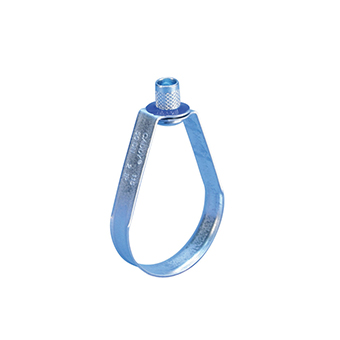

The 115 Standard Duty Loop Hanger is ideal for suspending stationary, non-insulated pipelines, including CPVC pipes, in fire sprinkler systems. A knurled insert nut helps simplify vertical adjustments and flared edges on the base (1/2” to 4” sizes) help protect pipes from coming into contact with any sharp edges of the hanger.

Features

  • Flared edges help prevent any sharp surfaces from coming into contact with the pipe (1/2" to 4" sizes)
  • Retained insert nut helps ensure the loop hanger and insert nut stay together
  • Recommended for the suspension of stationary non-insulated pipelines
  • Manufactured to use the minimum rod size permitted by NFPA® for fire sprinkler piping
  • Conforms with Federal Specification WW-H-171 (Type 10), Manufacturers Standardization Society (MSS) SP-58 (Type 10
