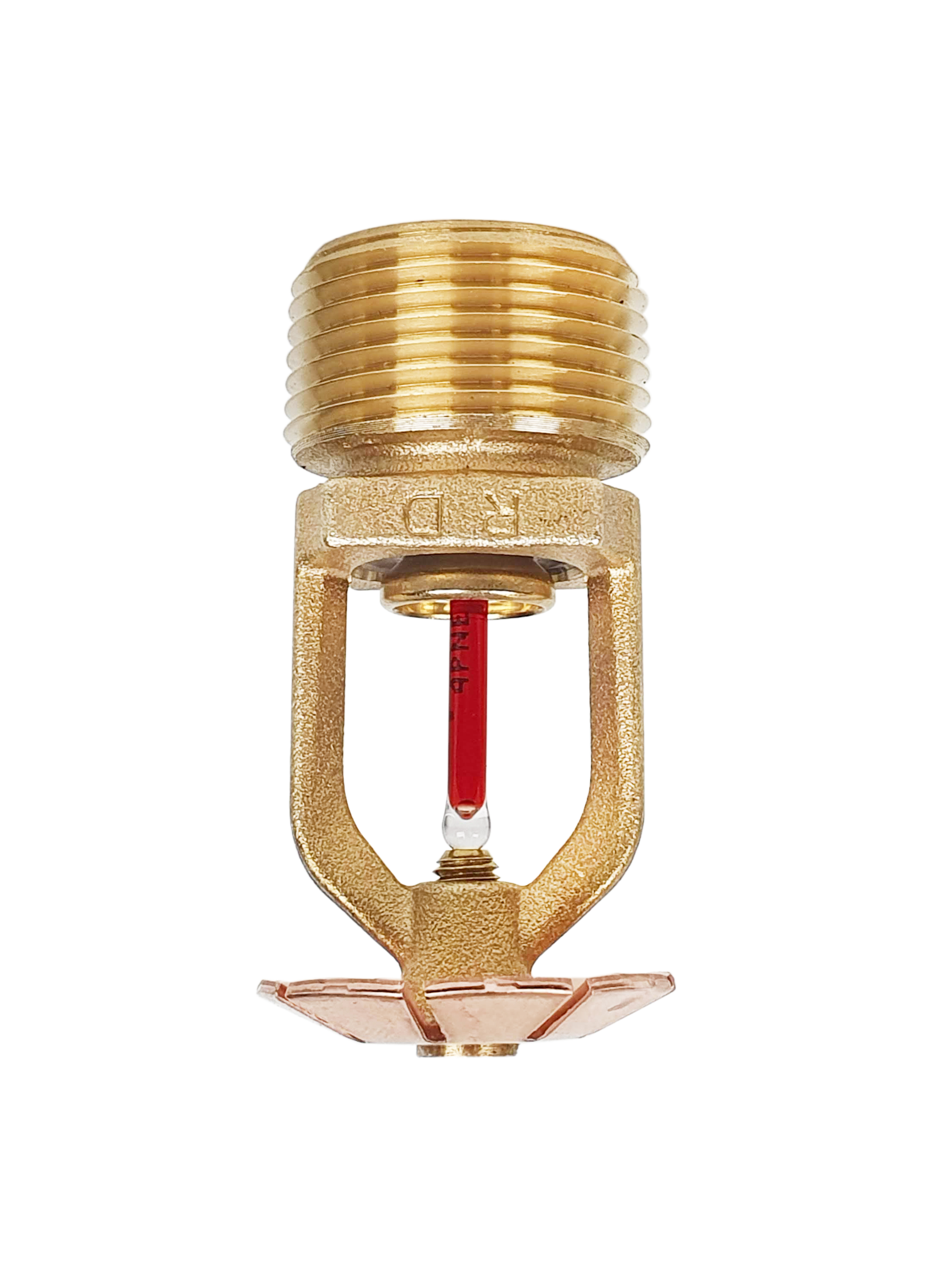

RD041 CUP Convetional Sprinkler Quick Response

  • LPCB Logo Mid grey 566d-06.jpg
  • CE Logo Mid Grey 144.jpg
  • UKCA black Mid Gray.jpg
K Factor K115 (K8.0)
Standard Thread Size 3/4" NPT
Response Quick
Maximum Working Pressure 12.1bar (175psi)
Finish Brass, Chrome and White painted finish. Special RAL colours available on request
Approvals LPCB, CE, UKCA

Rapidrop RD041 CUP is Quick Response frangible glass bulb automatic sprinkler. RD041 is LPCB, CE and UKCA Certified, standard orifice fire sprinkler for installation in fire sprinkler systems. In a fire condition the heat causes the fluid in the glass bulb to expand which shatters the glass and releases the seal assembly. Water flows from the orifice onto the sprinkler deflector which diffuses the water into a uniform spray pattern which extinguishes or controls the fire. Sprinkler produces a spherical water distribution pattern below the deflector.
