RDPIBV2 Supervisory Switch

RDPIBV2 Supervisory Switch

  • FM Approved Logo Mid Grey 300.jpg
  • UL Logo Mid Grey.jpg
Operating Temperature –40°F to 120°F (–40°F to 120°F)
Maximum Stem Extension 80 mm (3-5/32˝)
Mounting ½˝ NPT nipple
Conduit Entrances One single side open for ½˝ conduit
Contact Ratings Two sets of SPDT (Form C) 10.0 A @ 125/250V AC; 2.5 @ 6/12/24V DC
Approvals FM Approved, UL Listed

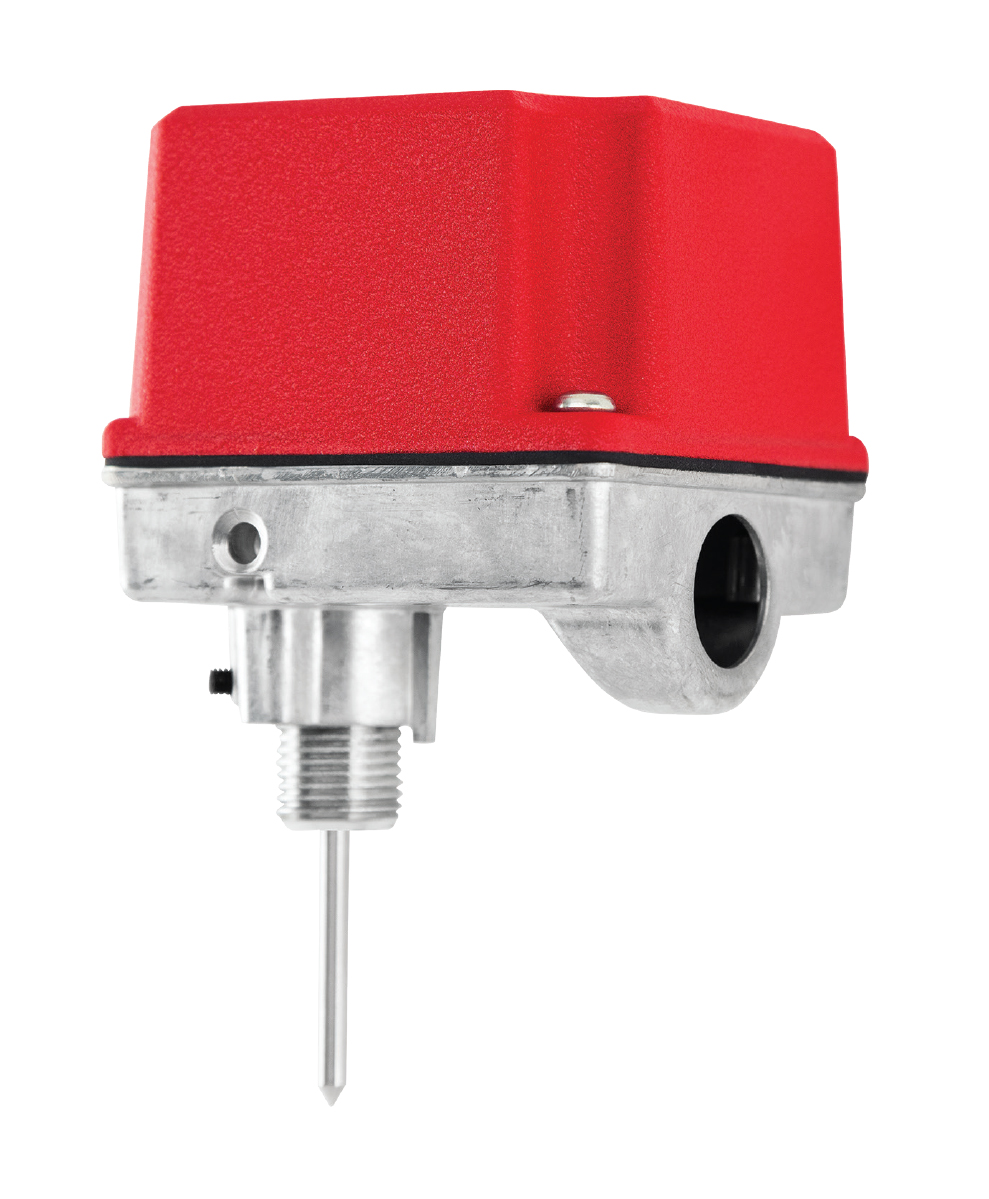

The RDPIBV2 supervisory switch monitors the open position of post indicator. Switch should be mounted so as not to interfere with the normal operation of the valve and adjusted to operate within two revolutions of the valve control. The mechanism is contained in a weatherproof die cast metal housing, which provides a side entrance for  ½˝ conduit and incorporates a ½˝ NPT nipple for attachment to the body. A grounding provision is provided. The switch assembly includes two switches each with a rated capacity of 10 Amp @ 125/250V AC and 2.5 Amp @ 24V DC. The cover contains tamper-resistant screws for which a security wrench is provided with each switch.
