PCVS-2 Post Indicator Supervisory Switch

PCVS-2 Post Indicator Supervisory Switch

  • FM Approved Logo Mid Grey 300.jpg (1)
  • CE Logo Mid Grey 144.jpg
  • UL Logo Mid Grey 144.jpg (1)
Approvals FM and CE Approved, UL Listed
Operating Temperature Range -40ºC to 60ºC (-40ºF to 140ºF)
Weight 0.45 kg (1 lbs)

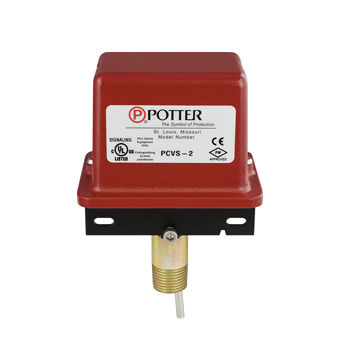

The Model PCVS-2 is a weather proof and tamper resistant switch for monitoring the open position of fire sprinkler control valves of the wall and yard post indicator and butterfly types. Two SPDT (Form C) contacts are provided which will operate when the valve position
is altered from an open state.

The unit mounts in a 1/2” NPT tapped hole in the post indicator or butterfly valve housing. The device is engaged by the indicating assembly of the post indicator or the operating mechanism of the butterfly valve, actuating switches when the valve is fully open. The unit should be installed where it is accessible for service. The cover is held in place by two tamper resistant screws that require a special tool to remove. The tool is furnished with each device.

Technical Details

Enclosure Cover: Die Cast Finish: Red Powder Coat
Base: Die Cast Finish: Black Powder Coat
All parts have corrosion resistant finishes
Cover Tamper Tamper Resistant Screws
Optional Cover Tamper Switch Available
Contact Ratings PCVS-2: Two Sets of SPDT (Form C)
10.0 Amps at 125/250 VAC
2.0 Amps at 30VDC Resistive
10 mAmps minimum at 24 VDC
Environmental
Limitations
-40ºC to 60ºC (-40º F to 140ºF )
NEMA 4X and NEMA 6P (IP 67) Enclosure
(Use suitably rated conduit and connector)
Indoor or Outdoor Use
Conduit Entrances Two Knockouts for 1/2” conduit provided
(See Fig.6 on Page 4 and Notice on Page 5)
Service Use Automatic Sprinkler - NFPA-13
One or two family dwelling - NFPA-13D
Residential occupancy up to four stories - NFPA-13R
National Fire Alarm Code - NFPA-72
Weight 0.45 kg (1 lbs)
