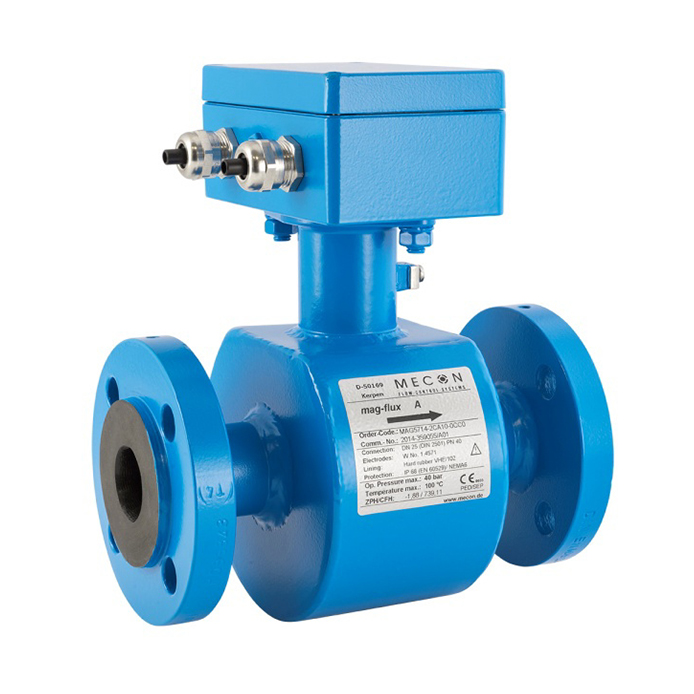

Electromagnetic Flow Sensor Mag-Flux A
| Size range | ½” (15 mm) - 6” (150 mm) |
|---|---|
| Pressure | Up to 250 bar |
Electromagnetic flow sensors mag-flux A are precision measuring devices, suitable for determining the flow rate of nearly any electrically conductive fluid, but also for substances such as sludge, pulp and paste.
Due to the magnetic field, the device can be used to measure flow rates up to 10 m/s (32.8 ft/s) and a minimum conductivity of 3 μS/cm, when using a synchronized static field.
The entire measuring device comprises a flow sensor and a dedicated transmitter. Those can be delivered either separately or as a compact unit.
Features
- Solid welded steel design, therefore rugged and fail-safe
- Signal amplifier inside sensor
- Inside diameter of measuring tube from 15 mm (0.591”)
- Pressure up to 250 bar
- Liner: hard rubber, soft rubber, PTFE & special linin upon request.
- Various connection types and materials
- Different materials and process connections:
-Flange DIN, ANSI & JIS
-Clamp
-DIN 11851
-Other upon request
Technical Data
| Measuring principle | Pulsed constant field (DC) |
| Nominal Diameter | DN 15 - DN 600 |
| Process Connections | DIN 2501 ANSI B 16.5 JIS Table Special Connections |
| Error of Measurement | ± 0,5 % of the reading from 0,25 m/s to 10 m/s |
| Repeat Accuracy |
± 0,15 % of the reading |
| Max. Operating Temperature with Rubber Lining | 90°C/194°F; 100°C /212°F optional |
| Max. Operating Temperature with PTFE lining | 180 °C (at 16 bar) 150 °C (at 25 bar) 100 °C (at 40 bar) |
| Pressure limit with Rubber Lining | max. 250 bar |
| Pressure limit with PTFE lining | depending on ambient temperature |
| IP Rating | IP67 / IP68 |
| Minimum Conductivity | > 5 μS/cm |
| Max. Flow Rate | 10 m/s |
| Flow Rate Final Value | 0,25 - 10 m/s |
Specifications
| Design | Welded Steel Housing |
| Measuring Tube | Stainless Steel |
| Solenoid Chamber | Steel, Stainless Steel optional |
| Flange | Steel Stainless Steel Special Materials |
| Lining of Measuring pipe | Hard Rubber / Soft Rubber PTFE |
| Electrodes Material | Mat. No 1.4571(standard) Hastelloy C4 Titanium Tantalum Platinum Monel |
| Electrodes Design | Mat. No. 1.4571 flat electrodes other point-plane electrodes |
| Electrodes Sealing | Viton (Standard) EPDM Kalrez |
