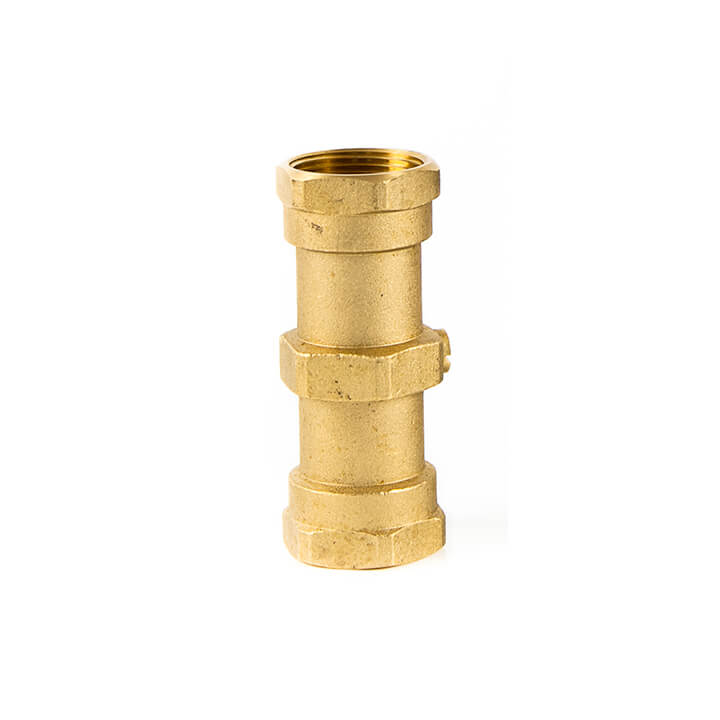

Double Check Valve

Double Check Valve

Sizes 25mm (1”) to 50 (2”)
Maximum Temperature 85˚C
Working Pressure Range 0.1bar - 16 bar
Standards BS10226-1
Approvals WRAS Approved

Rapidrop double check valves are used to protect against the risk of back-flow and back syphonage in accordance with the Water Supply Regulations 1999 (Class 3 contaminations).

Compact lightweight construction allows easy installation. Equipped with integral test point for monitoring correct functioning of the downstream check valve. Allows high flow rate with minimum pressure drop.

WRAS single check valves are also available

Material Specification

Description Material
Body DZR Brass
Seals EPDM
Check Cartridges Acetyl Copolymer
Spring Stainless Steel
