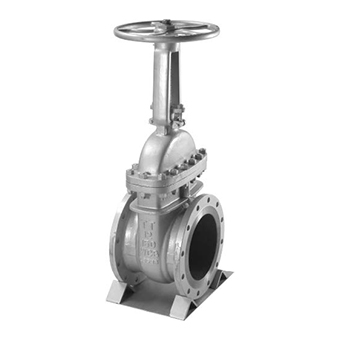

Cast Steel OS&Y Gate Valve
| Design Standards | ASME B16.34 |
|---|---|
| Connections | PN40 Flange as per BS EN 1092-1 |
| Maximum Working Pressure | 46bar (670psi) at 100°C (Class 300) |
| Size Range | 65mm - 200mm (2½" - 8") |
Rapidrop Cast Steel OS&Y Gate Valve - Class 300
Features
- Valve according to API 600
- End to End dimensions according to ANSI B16.10
- Monitoring option with PSP1 switch
Material Specifications

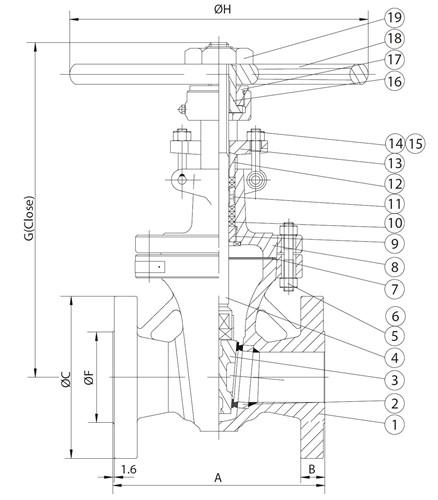

| Part No. | Description | Gate |
| 1 | Body | Cast Steel |
| 2 | Body Ring | Carbon Steel |
| 3 | Gate | Cast Steel |
| 4 | Stem | Stainless Steel |
| 5 | Bonnet Bolt | Steel |
| 6 | Bonnet Nut | Steel |
| 7 | Gasket | Spiral Wound |
| 8 | Bonnet | Cast Steel |
| 9 | Backseat Bushing | Stainless Steel |
| 10 | Packing Ring | Graphite |
| 11 | Distance Ring | Stainless Steel |
| 12 | Gland | Stainless Steel |
| 13 | Gland Flange | Cast Steel |
| 14 | Eye Bolt | Steel |
| 15 | Eye Bolt Nut | Steel |
| 16 | Stem Nut | NI-Resist |
| 17 | Gland Nut | Carbon Steel |
| 18 | Handwheel | Nodular Cast Iron |
| 19 | Handwheel Nut | Carbon Steel |
