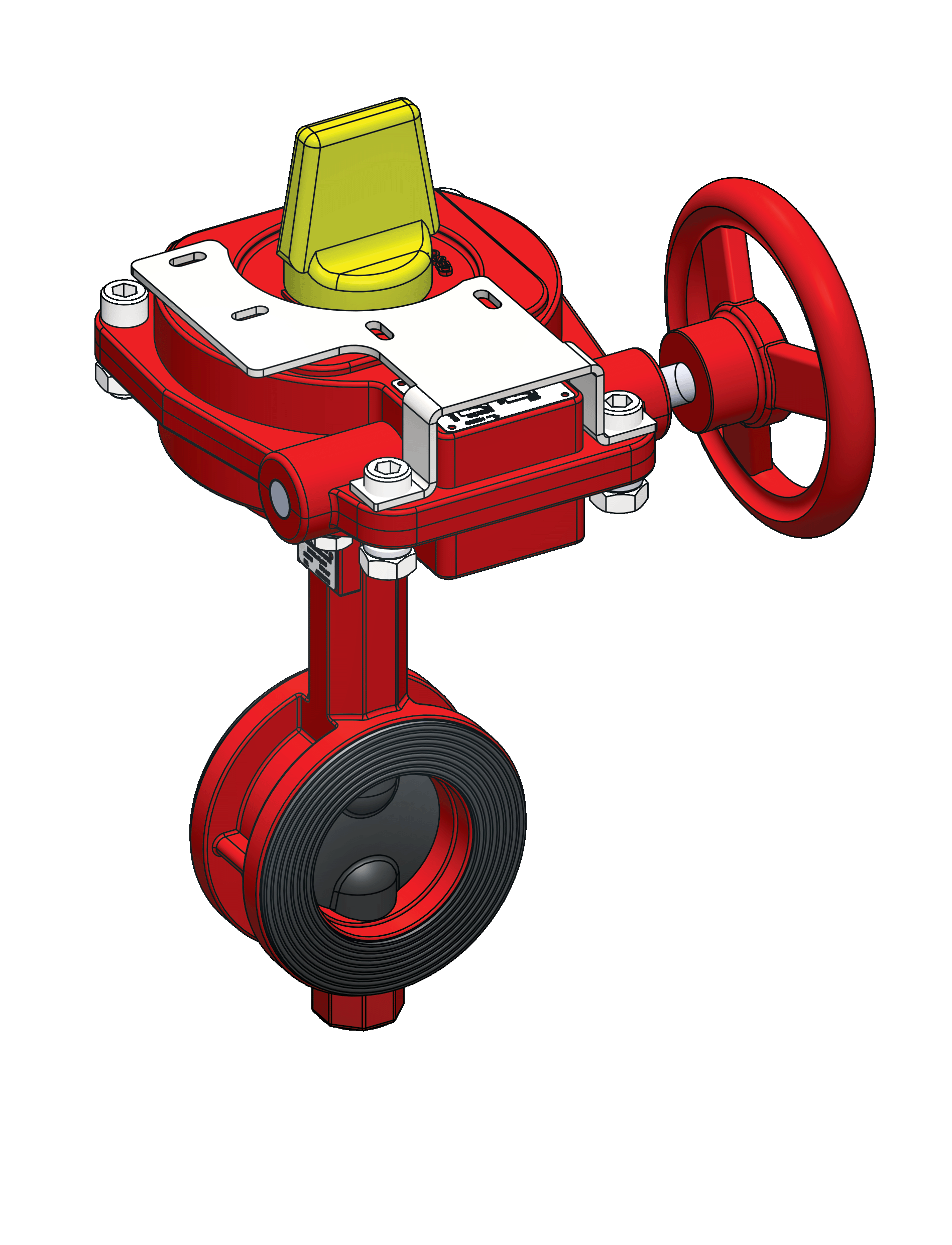

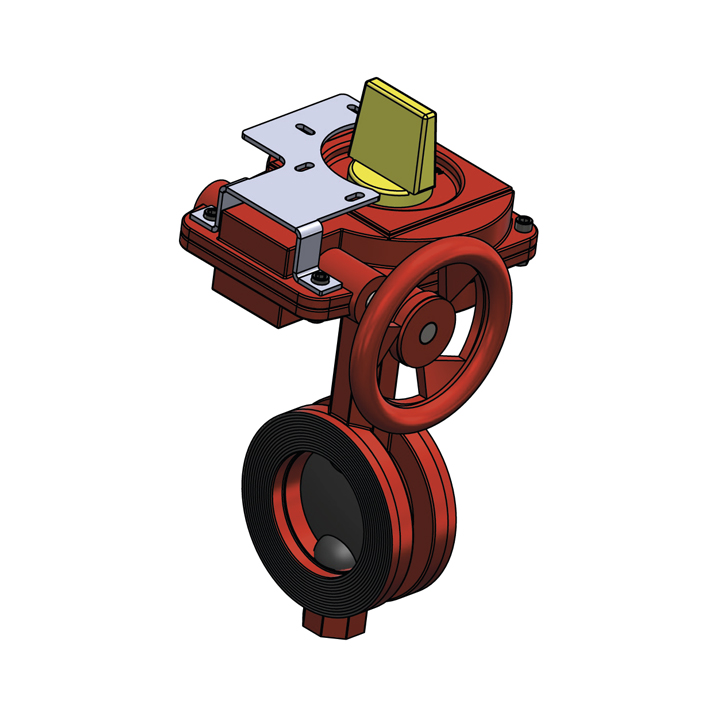

215 Wafer Butterfly Valve with Switch Mounting Bracket

215 Wafer Butterfly Valve with Switch Mounting Bracket

  • FM Approved Logo Mid Grey 300.jpg
  • UL Logo Mid Grey 144.jpg
  • VdS Logo mid grey 600.jpg
Size Range 50mm - 300mm (2" - 12")
Body Type Wafer
WORKING PRESSURE 20.7 bar (300 psi) FM, 20.7 bar (300 psi) UL, 16.0 bar (232 psi) VdS
WORKING TEMPERATURE 0°C to 80°C (32°F to 176°F)
Approvals FM and VdS Approved, UL Listed

Rapidrop Figure 215 Wafer Butterfly Valve is a rotary type valve with a visual indication of whether the valve is in fully open position or not.

Valve is supplied with pre-installed mounting bracket designed for installation of external switches to monitor both open and/or closed position of the valve. External switch must be ordered separately.

Butterfly valves are commonly used in fire protection systems as system control valves, sectional or pump water control valves. These valves have been designed with minimum flow restriction and pressure loss when in fully open position. To reduce the risk of a water hammer Rapidrop Butterfly Valves are provided with a slow close hand wheel operated gearbox.
