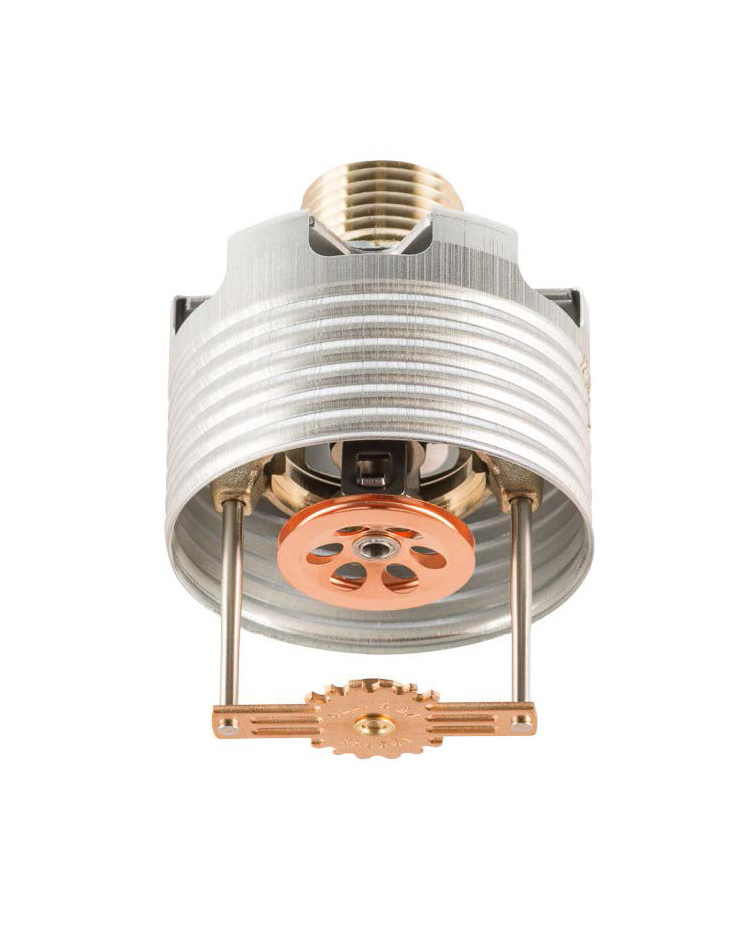

RD106 Commercial Flat Concealed Pendent Sprinkler

  • FM Approved Logo Mid Grey 300.jpg
  • UL Logo Mid Grey.jpg
K-Factor K80 (5.6)
Response UL Listed - Quick Response
FM Approved - Standard Response
Maximum Working Pressure 12.1 bar (175 psi)
Link Fusible Link
Temperature Rating Sprinkler: 72°C/162°F, Cover Plate: 60°C/140°F
Sprinkler: 96°C/205°F, Cover Plate: 60°C/140°F
Sprinkler: 96°C/205°F, Cover Plate: 72°C/162°F
Cover Plate Size 68mm (2-5/8")
Vertical Adjustment 12.8mm (1/2")
Finish White, Ivory, Beige, Brown, Black, Nickel, Wood Grain or Custom painted
Approvals UL Listed, FM Approved

The Model RD106 Commercial Flat Concealed Sprinklers are automatic sprinklers of the compressed fusible solder type. The Cover Plate Assembly hides the Deflector, Heat Responsive Element etc., which is concealed above the ceiling. The cover plate has a flat profile, and it’s diameter is 68mm (2-5/8 inch). The push-on or thread-on, thread-off design of the concealed cover plate assembly allows for easy installation of the cover plate.

Therefore, the Model RD106 should be your first choice when aesthetics is the major consideration for ultimate appeal and unbeatable performance is desired.

They are to be installed as per NFPA 13 guidelines. The Model RD106 has a K80 (5.6) K-factor.

For extended installation flexibility, the Model RD106 provides 12.8mm (1/2 inch) vertical adjustment. This adjustment in installation decreases the need for precise cutting of the pipe that drops to the sprinkler and allows for a perfect fit with a range of pipe lengths.

The heat sensitivity and water distribution design of Model RD106 allows for an increased chance of occupants to escape or evacuate in case of a fire.
