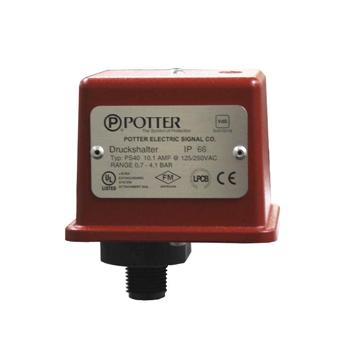

PS10-1 & PS10-2 Pressure Switch

PS10-1 & PS10-2 Pressure Switch

  • CE Logo Mid Grey 144.jpg
  • FM Approved Logo Mid Grey 300.jpg (1)
  • UL Logo Mid Grey 144.jpg (1)
  • VdS Logo mid grey 600.jpg
  • LPCB Logo Mid Grey.jpg
Approvals FM, LPCB, VdS and CE Approved, UL Listed
Working Pressure UL & FM - 20.7 bar (300 psi), LPCB - 17.2 bar (250 psi), VdS - 16 bar (230 psi)
Connection Nylon 1/2” NPT Male
Adjustment Range 0.7 - 4.1 bar (10 - 60 psi)

The PS10 Series Pressure Actuated Switches are designed for the detection of a waterflow condition in automatic fire sprinkler systems of particular designs such as wet pipe systems with alarm check valves, dry pipe, preaction, or deluge valves. The PS10 is also suitable to provide a low pressure supervisory signal; adjustable between 0.27 and 1.03 bar (4 and 15 psi).
