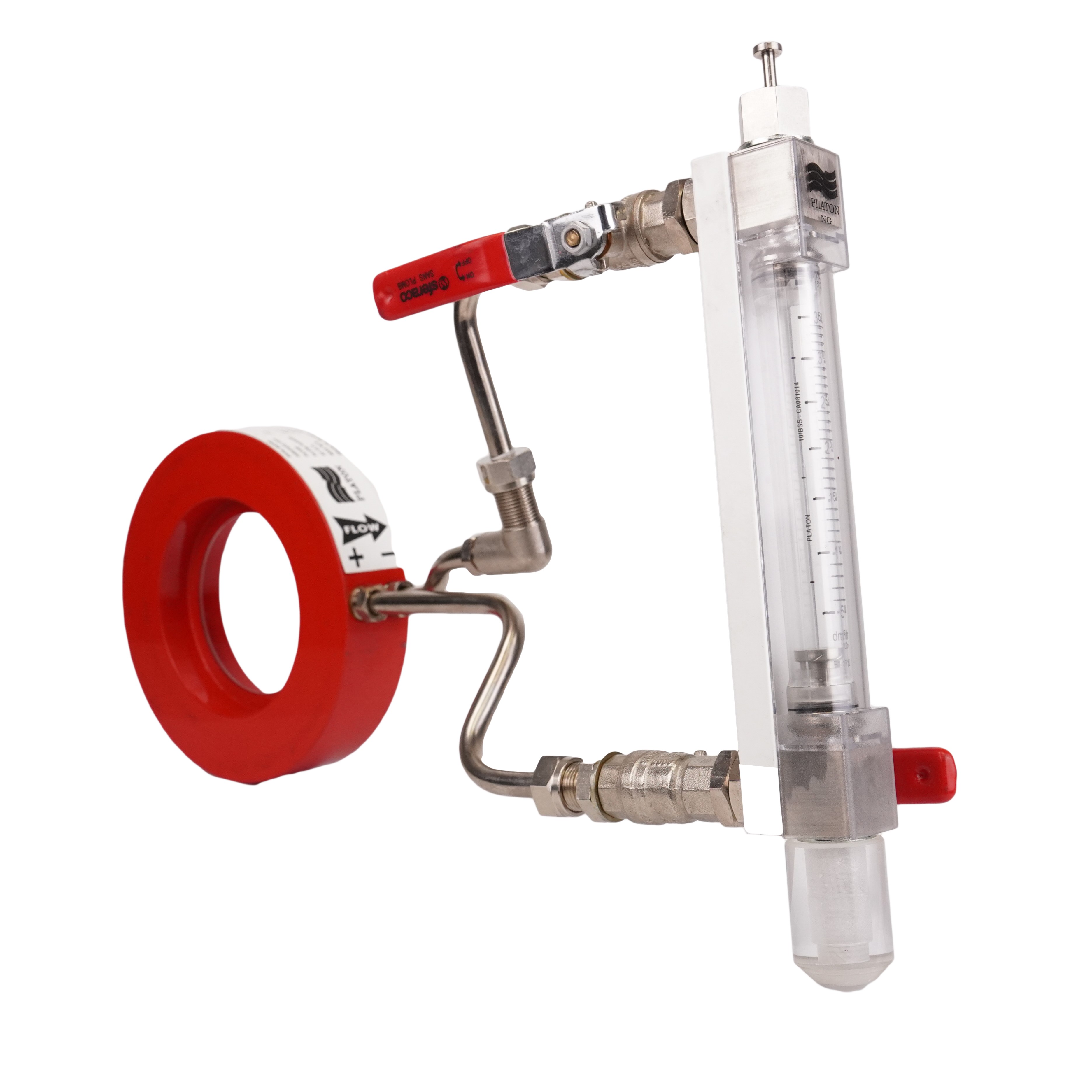

Platon Fire Sprinkler Flow Meter

Platon Fire Sprinkler Flow Meter

  • LPCB Logo Mid grey 088a-05-09.jpg
Size range 50mm - 200mm (2" - 8")
Body type Flanged / Grooved
Working pressure 16 Bar (max test pressure 30 bar)
(232 psi (max test pressure 435 psi))
Working temperature 80°C (176°F)
Material Stainless steel (main orifice carrier)
Approvals LPCB

LPCB approved sprinkler system flow meter that can be installed in automated systems, between flanges or with grooved couplings. Unit includes full bore isolating valves for meter isolation, filter cleaning or flow tube replacement, (spare supplied). The in-line filter avoids clogging of the bypass line or the flow restrictor with pipe debris. The bleed valves allow drainage of the metering section and/or venting of trapped air. Suitable for horizontal or vertical pipes.

Flow Rate

Flow meter Type Flow Range (dm3/min) LPCB Ref. No. Test Flows (dm3/min) Tolerance +/- 5%
 DN50 150 - 700 088a/05 500
DN80 300 - 1600 088a/06 800, 1300
DN100 500 - 3500 088a/07 1500, 2200
DN150 900 - 7900 088a/08 2500, 3500, 4500
DN200 2000 - 15000 088a/09 5000, 7000, 9000
