101 Vertical Post Indicator

101 Vertical Post Indicator

  • FM Approved Logo Mid Grey 300.jpg (1)
  • UL Logo Mid Grey 144.jpg (1)
Size Range DN100 (4") to DN300 (12")
Adjustment Range 0-870mm
Body material Ductile Iron
Coating Fusion bonded epoxy coating in accordance with AWWA C550
Approvals FM approved, UL Listed

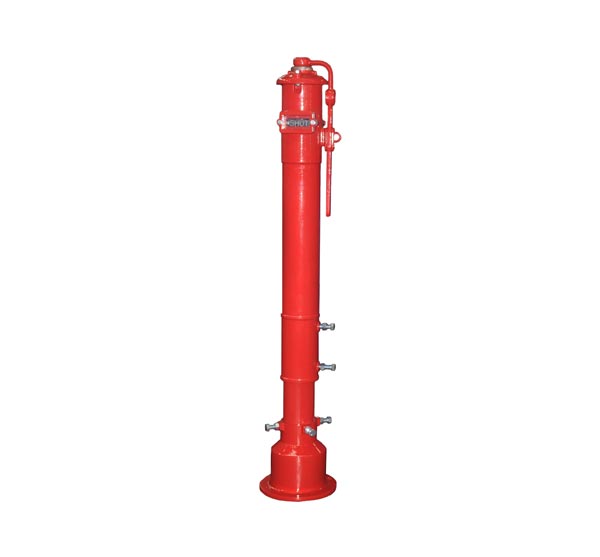

Rapidrop Model 101 Vertical Post Indicators are UL Listed & FM Approved. They are used to identify the position of underground post Indicator valves, they are recommended for use in fire protection piping systems. Each post indicator unit consists of four components, the post, the telescopic pipe, Base and Stem. The Rapidrop model 101 is adjustable to accommodate varying bury depths.

Material Specification

Part No. Item Material
1 Locking Wrench Cast Iron, ASTM A126B
2 Operating Nut Bronze, ASTM B62
3 Hex Nut Screw Carbon Steel, ASTM A105
4 Hex Nut Carbon Steel, ASTM A105
5 Snap Ring Alloy Steel, AISI A606
6 Target Carrier Nut Bronze ASTM B62
7 Target Aluminium Alloy, ASTM B108
8 Hex Cap Screw Carbon Steel, ASTM A105
9 Window Glass Lexan-Um
10 Window Glass Gasket PTFE
11 Hex Cap Screw Carbon Steel, ASTM A105
12 Hex Nut Carbon Steel, ASTM A105
13 Body Ductile Iron, ASTM A536
14 Hex Cap Screw Carbon Steel, ASTM A105
15 Hex Nut Carbon Steel, ASTM A105
16 Base Flange Cast Iron, ASTM A126B
17 Hex Cap Screw Carbon Steel, ASTM A105
18 Hex Nut Carbon Steel, ASTM A105
19 Crane Coupling Ductile Iron, ASTM A536
20 Cotter Pin Stainless Steel
21 Stand Pipe Carbon Steel, ASTM A53
22 Stem Carbon Steel, AISI 1045
23 Plug Stainless Steel, AISI 304
24 Cover Cast Iron, ASTM A126B
25 Cross Recessed
Countersunk Head Screw
Cast Iron, ASTM A126B
26 Locking Nose Carbon Steel, ASTM 307B

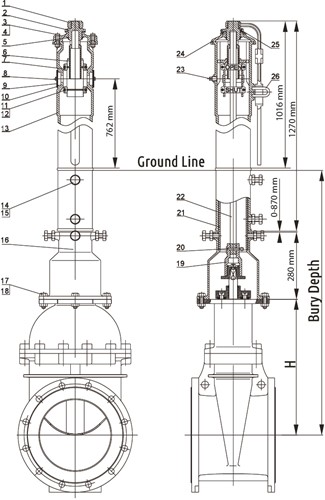

Dimensions

101 Vertical Post Indicator
